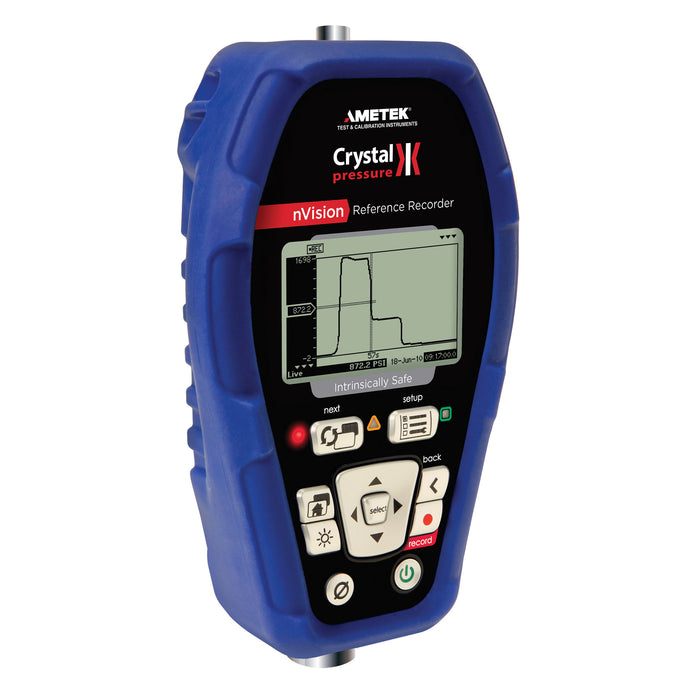

Gain lab accuracy in the field with the Crystal nVision Reference Recorder. Visualize measurements on a graph in real time and see changes as you record with the ability to zoom and pan across data using the arrow keys.

The nVision Pressure Recorder logs pressure data up to 15,000 psi/1000 bar as well as differential pressure measurement to a 0.025% accuracy. Crystal nVision modules (sold separately) are available to expand capability in your monitoring with combinations of pressure + pressure, pressure + temperature, and pressure + current.

Configure your nVision with CrystalControl software with customizable features to format your graphs, disable unnecessary units, graph data runs, and start recordings directly from your PC. Export your readings as PDF, CSV, or Excel files.

This unit has been drop tested from 5 feet and is submersible in 1 meter of water for 30 minutes, making it a rugged option for a multi-purpose recorder.

Features:

• Measures up to 15,000psi with up to 0.025% reading accuracy
• Records 1 million data points
• Switch between voltage, current, and temperature with nVision modules
• Comes with a Calibration Certificate traceable to NIST
