DeFelsko PosiTest Automatic Adhesion Tester

DeFelsko PosiTest Automatic Adhesion Tester

by DeFelsko
$4,400.00 - $4,925.00
$4,400.00
$4,400.00 - $4,925.00
$4,400.00
  • Overview
  • Product Information
  • Accessories
  • Resources

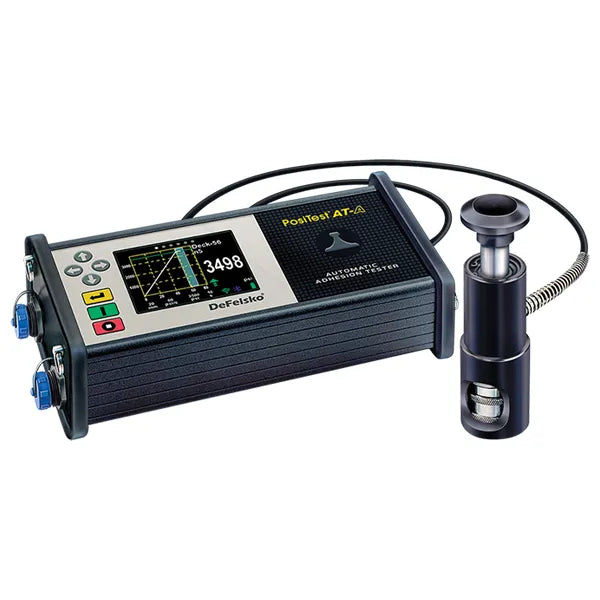

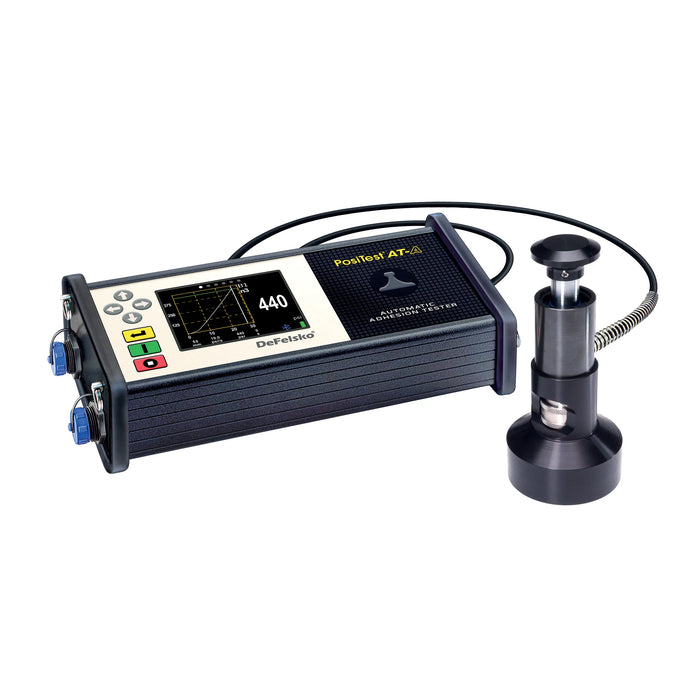

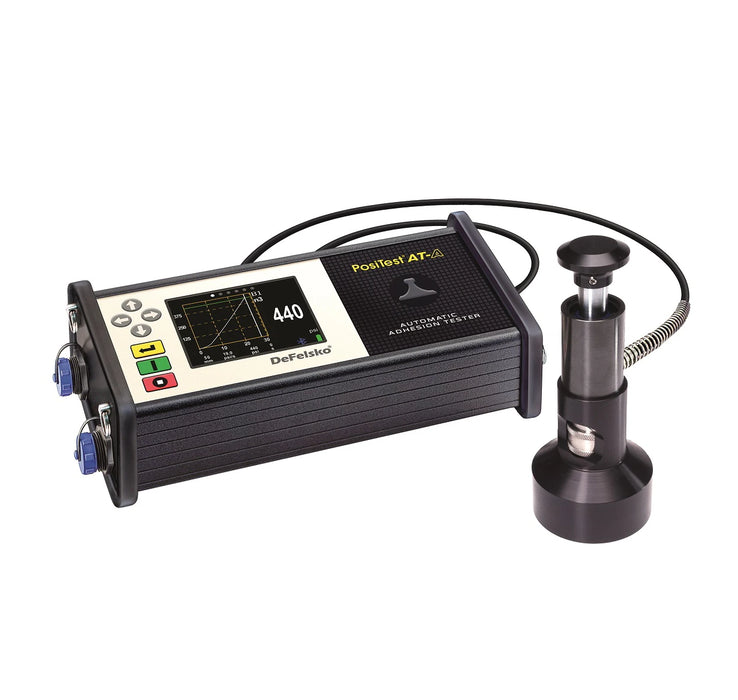

  • DeFelsko PosiTest AT-A Automatic Adhesion Tester for testing coatings adhesion on metal, wood, concrete, and other rigid substrates. The AT-A’s electronically-controlled hydraulic pump is push-button-operated, eliminating the need for manual priming, or pumping of the hydraulic system.

  • The AT-A has been redesigned to include an enhanced battery providing 25% greater capacity for over 250 tests per charge, as well as faster charging times. Now featuring USB-C connectivity to facilitate continuous operation and quicker data transfer, the Automatic Adhesion Tester is compatible with any standard USB-C charger although charging times may vary. The new model also features enhanced reporting capabilities including detailed pressure vs. time data at one-second intervals in addition to maximum pull-off pressure, pull rate, and fracture type.

    DeFelsko PosiTest AT-A features a high-resolution, impact and scratch-resistant, colour Touch Screen display with controls identical to the digital keypad. A full digital keypad allows the user to select pull-off pressure, pull rate, dolly size, as well as to change measurement units or store readings in the gauge. User-selectable pull rate, pull limit, dolly size, and hold time, ensure conformance to international standards for a wide range of test applications.

    Additional features of the Automatic Adhesion Tester include the ability to record Pass/Fail results and identify the type of coating failure – cohesion, adhesion, and glue failures. Internal memory stores data for up to 100,000 pulls in up to 1,000 batches, including maximum pull-off pressure, rate of pull, test duration, dolly size, and the pass/fail information.

    The rubberized, impact-resistant end caps on the PosiTest Automatic Adhesion Tester provide an ergonomic grip, and stable, skid-resistant footing. AT-A also features a built-in, rechargeable NiMH battery, shoulder strap, and AC power option for greater versatility and convenience of use. Both models of PosiTest Adhesion Tester have the PosiTest Self-Aligning Dolly System which allows the dolly-head to articulate in the actuator to compensate for uneven surfaces, making possible a proper, vertical pull, and ensuring reliable, repeatable test results.

    Features:

    • Portable; requires no external power source
    • Environmentally-sealed enclosure is weatherproof, dustproof, and shockproof; ingress protection IP65

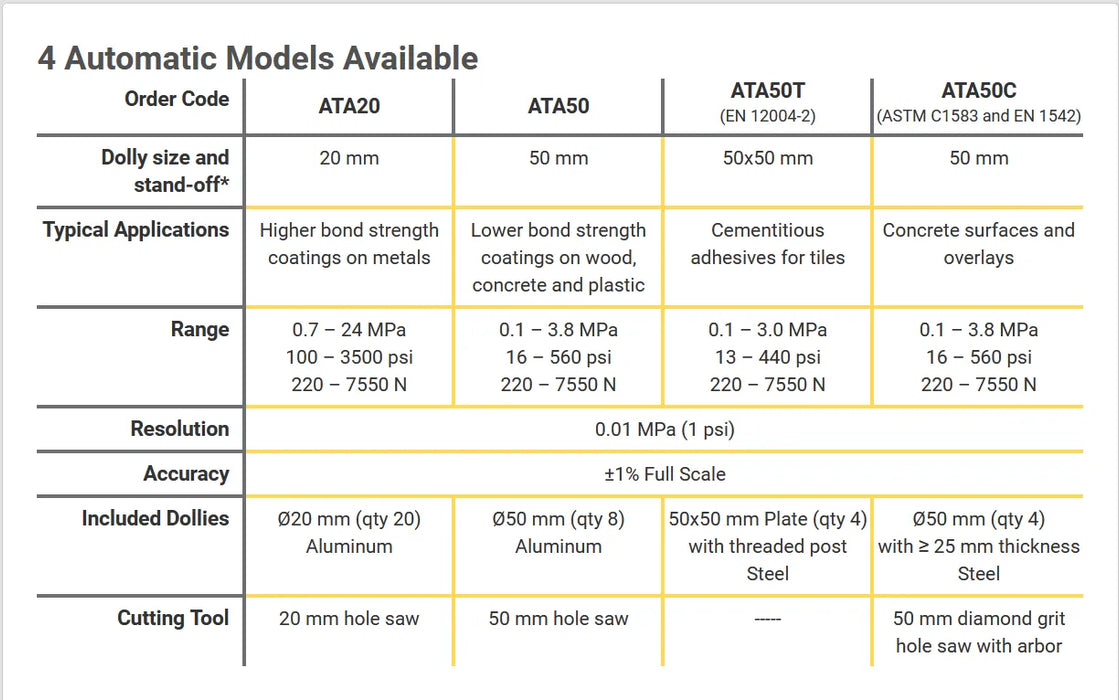

    • 10, 14, 20, or 50 mm dollies maximize capability and accuracy across a wide range of bond strengths:
      • 10 mm: 10,000 psi (70 MPa)
      • 14 mm: 6,000 psi (40 MPa)
      • 20 mm: 3,000 psi (20 MPa)
      • 50 mm: 480 psi (3.3 MPa)
      • 50×50 mm: 375 psi (2.585 MPa)
    • Calibration and certification to + 1% accuracy, using NIST-traceable load cell
    • 2-year manufacturer’s warranty
    • Conforms to national and international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others
    • Pull-off strength of up to 3500 psi (24 MPa, 7550 N) with 20 mm dollies
    • Wireless connection to your smart device using free PosiTector mobile app to create and share customized, professional PDF reports
    • Built-in, rechargeable battery performs 200 or more test on a charge; testing can continue on AC-power while battery is being recharged
    • Universal AC-adaptor battery charger

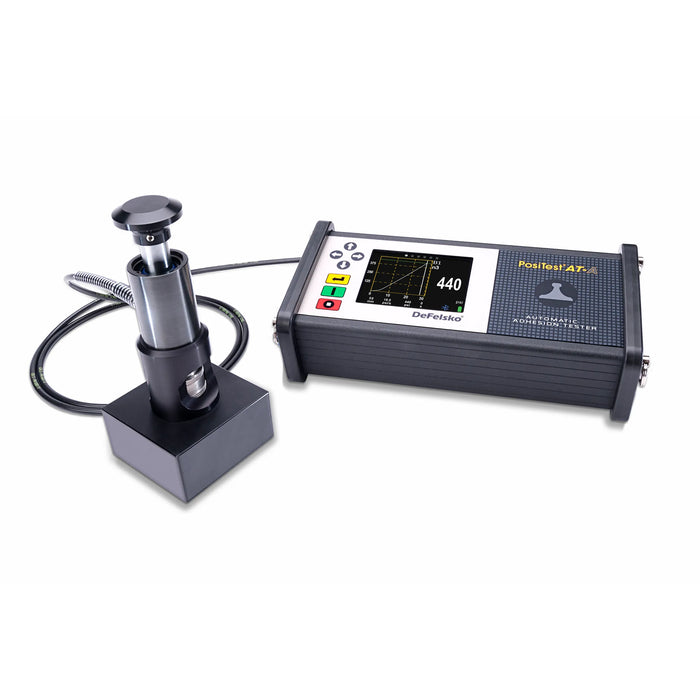

    In addition, Conversion Kits are available for all dolly types: 20 mm, 50 mm low bond-strength, 50 x 50 mm Tile Conversion Kit, and 50 mm C1583 Conversion Kit. The addition of any conversion kit to the allows the PosiTest AT-A to be used in a broad range of applications.

    Stone Tucker Instruments is able to certify your PosiTest Automatic Adhesion Tester.

  • The DeFelsko PosiTest AT-A Automatic Adhesion Tester Kit comes with:

    • PosiTest AT-A Automatic Adhesion Tester
    • Rechargeable NiMH Battery with Charger
    • Dollies with Stand-off and Cutting Tool
    • Abrasive Pad
    • Adhesive with Mixing Sticks and Palettes
    • Cotton Swabs
    • USB Cable
    • PosiSoft Software
    • Instruction Booklet and Video
    • Shoulder Strap
    • Certificate of Calibration traceable to NIST
    • Carrying Case

  • Please click here to view the DeFelsko PosiTest Adhesion Tester Datasheet
