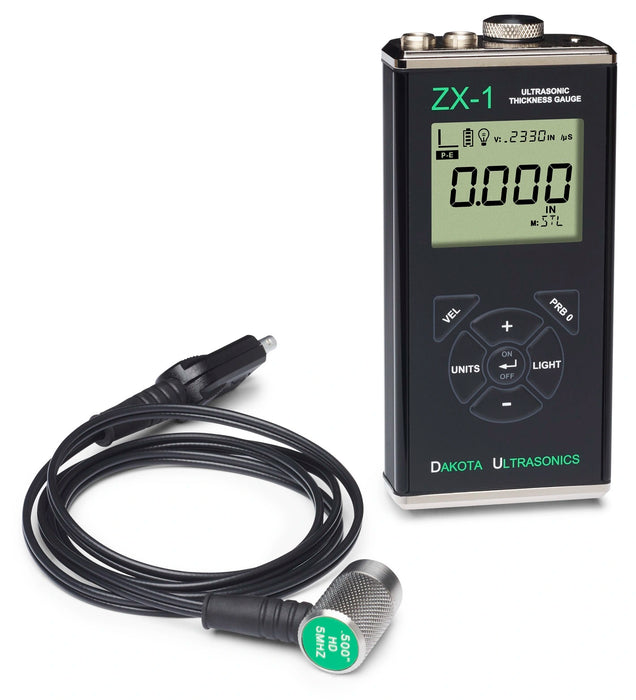

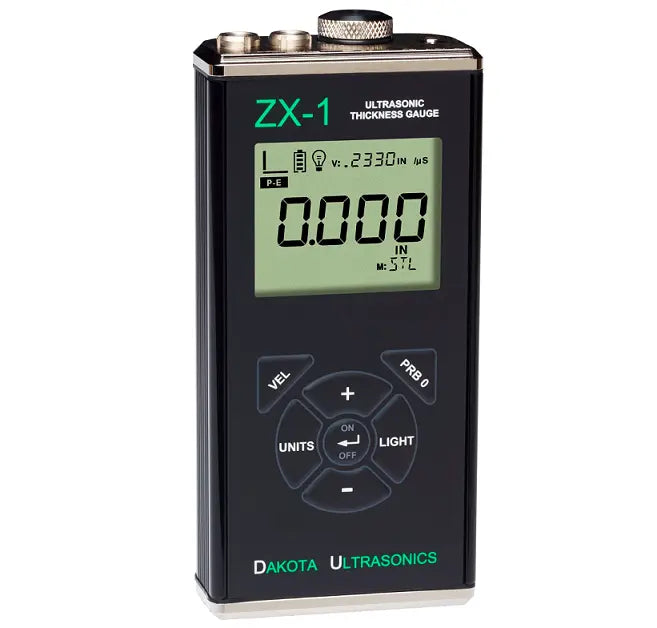

Dakota Ultrasonics ZX-1 Ultrasonic Thickness Gauge

Dakota Ultrasonics ZX-1 Ultrasonic Thickness Gauge

Contact Stone Tucker for Pricing

by Dakota Ultrasonics
  • Overview
  • Product Information
  • Accessories
  • Resources

  • Dakota Ultrasonics ZX-1 Ultrasonic Thickness Gauge is a basic single-velocity gauge, ideal where the material thickness of a single material will be measured repeatedly.

    Dakota ZX-1 is suitable for measuring the thickness of materials to evaluate for corrosion and pitting in tubes, pipelines, tanks, boilers, and other applications. Simply adjust the velocity using the ZX-1 keypad to consistently and accurately measure thickness of one material, locate blind surface pitting, or internal defects and flaws in a variety of materials.

  • Features:

    • Adjustable material velocity using keypad
    • Manual zero function
    • Pulse-echo measurement
    • Dual-element transducers (1 – 10 MHz options) with 4-foot cables
    • Locking quick-disconnect LEMO connectors
    • Custom transducers are available for special applications
    • Can measure reliably on curved surfaces with larger diameters.
    • Bar graph indicates stability of reading
    • Multi-function 7-segment 4.5 digit LCD display
    • Low-temperature, custom LCD display (- 22˚F / – 30˚C)
    • Extruded aluminium body with nickel-plated aluminum, gasket-sealed end caps
    • Sealed membrane keypad is resistant to water and petroleum products
    • IP65 protection rating
    • Operating temperature of -22 to 167˚F / -30 to 75˚C
    • Backlight on/off/auto selectable
    • Adjustable brightness (low/medium/high)
    • Two 1.5V alkaline, 1.2V NiCad, or 1.5V Lithium AA cells
    • Typically operates for 45 hours on alkaline and 23 hours on NiCad batteries
    • Low-battery indicator on display; automatic turn-off when battery is too low for reliable operation
    • Factory calibration traceable to NIST & MIL-STD-45662A

    Measurement Details:

    Range 0.025 to 36.00 inches/0.63 to 914.4 mm
    Units mm and inches
    Resolution 0.001 inch (0.01 mm)
    Velocity Range 0.0120 to .7300 in/μs (305 to 18,542 m/sec)
    Display Update Rate 10 Hz

    Other models of the Dakota Ultrasonic Thickness Gauges include ZX-2, ZX-3, and ZX-5.

    Stone Tucker Instruments is able to certify your Dakota Ultrasonics ZX-1 Ultrasonic Thickness Gauge.

  • Dakota ZX-1 Ultrasonic Thickness Gauge comes complete with:

    • ZX-1 Gauge
    • Dual-element Transducer
    • Small bottle of Ultrasonic Couplant
    • Certificate of Calibration
    • Operating Instructions
    • Protective Plastic Carrying Case
    • Five Year Limited Warranty

  • Please click here to view the Dakota Ultrasonics ZX-1 Datasheet
