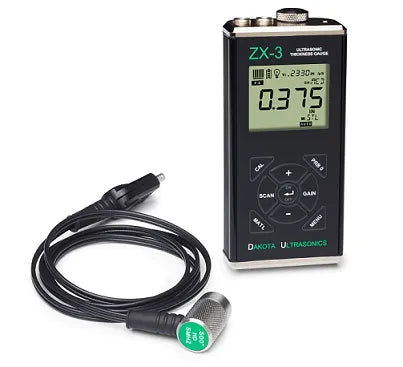

Dakota Ultrasonics ZX-3 Ultrasonic Thickness Gauge

Dakota Ultrasonics ZX-3 Ultrasonic Thickness Gauge

Contact Stone Tucker for Pricing

by Dakota Ultrasonics
  • Overview
  • Product Information
  • Accessories
  • Resources

  • Dakota Ultrasonics ZX-3 Ultrasonic Thickness Gauge offers portable material thickness measurement in a durable, hand-held instrument that can be calibrated in-field for all materials, as well as Non-Destructive Examination for corrosion and pitting.

  • Dakota Ultrasonics ZX-3 Ultrasonic Thickness Gauge combines rugged durability precision material thickness measurement between 0.025 and 36.00 inches to a resolution of .001 inch. The ZX-3 is also suitable for non-destructive corrosion inspection, tube and pipeline evaluation, evaluation for pitting and corrosion of tanks, boilers, tubes, pipes including pipelines, naval and other ships, and vessels of all kinds.

    Handheld ZX-3 UTG features extruded aluminum body, with nickel-plated aluminum end caps, sealed membrane keypad that is water and petroleum-resistant, and sealed-gasket end-caps to accommodate rough field conditions. ZX-3 is supplied with a dual-element transducer in 1 – 10 MHz frequency range, locking quick-disconnect LEMO connectors, and standard 4-foot cable.

    Field-calibratable for a range of materials, ZX-3 offers great versatility and accuracy, and provides up to 45 hours of use with alkaline batteries.

    Features of Dakota’s ZX-3 include automatic zero in addition to the standard manual zero; 40 – 52 dB GAIN in 3 dB steps; material selection from a number of common materials using the keypad; and selectable probe diameter to improve linearity of results.

    Features of the Dakota Ultrasonics ZX-3:

    • Single or two-point calibration option for extreme accuracy
    • High speed scan mode at 100Hz
    • Measuring range: .025 – 36.00 inches (0.63 to 914.4 mm) - (dependent on material & transducer type)
    • Velocity range of 0.0120 to .7300 in/µs (305 to 18,542 m/sec)
    • Scan mode: 16 readings per second; captures minimum thickness
    • Uses dual-element pulse-echo transducer with 4–foot cable
    • Custom transducers available on request
    • 4.5 digit LCD display with .5″ numerals
    • 5-year limited manufacturer’s warranty on the gauge against defects in material and workmanship
    • 90-day manufacturer’s warranty against defects in material and workmanship on transducers

    Other models of the Dakota Ultrasonic Thickness Gauges include ZX-1, ZX-2, and ZX-5.

    Stone Tucker Instruments is able to recertify your Dakota Ultrasonics ZX-3 Ultrasonic Thickness Gauge.

  • Dakota ZX-3 Ultrasonic Thickness Gauge comes complete with:

    • ZX-3 Gauge
    • Dual-element Transducer
    • Small bottle of Ultrasonic Couplant
    • Certificate of Calibration
    • Operating Instructions
    • Protective plastic carrying case

  • Please click here to view the Dakota Ultrasonics ZX-3 Datasheet
