DeFelsko PosiTector 200 Probes

DeFelsko PosiTector 200 Probes

by DeFelsko
$2,639.00 - $3,227.00
$2,639.00
$2,639.00 - $3,227.00
$2,639.00
  • Overview
  • Product Information
  • Accessories
  • Resources

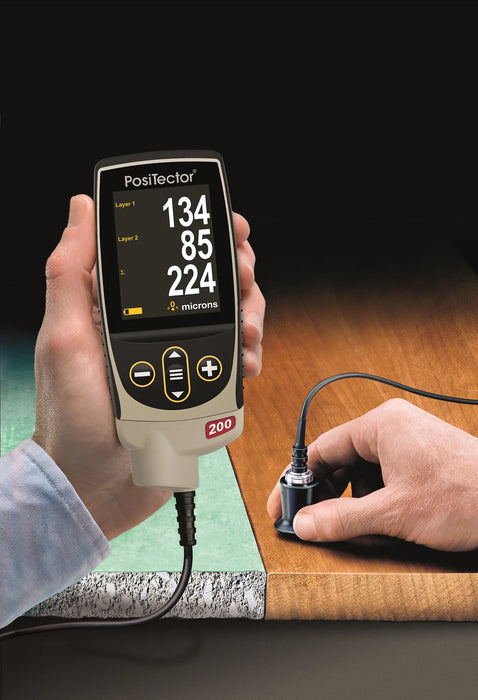

  • DeFelsko PosiTector 200 Probes use ultrasound technology to non-destructively measure coating thickness over wood, concrete, plastic, polymers, polyureas, and more.

    The PosiTector 200 Probes are compatible with DeFelsko’s PosiTector Standard and Advanced gauge bodies. Both gauge models have memory, statistics, and a USB port, and probes are fully-interchangeable on both gauge bodies.

  • DeFelsko PosiTector 200 Probes employ ultrasonic technology for non-destructive measurement of coating thickness on non-metal substrates. With memory storage up to 1,000 readings, and date-and-time stamp of all stored readings, the PosiTector 200 Standard model measures total coating thickness within the range of the chosen probe.

    PosiTector 200 Advanced model measures total coating thickness, or up to three individual layers of a multi-layer coating system.

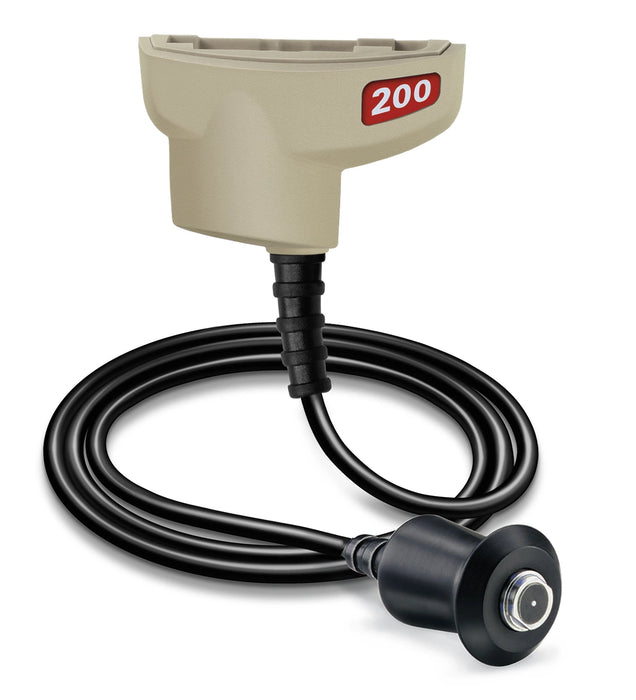

    Range

    200B Probe 0.5-40 mils (13-1,000 microns)
    200C Probe 2-150 mils (50-3,800 microns)
    200D Probe 2-300 mils (50-7,600 microns)

    Features of all PosiTector 200 Probes:

    • Solvent, acid, oil, water and dust resistant – weatherproof
    • Shock-absorbing, protective rubber holster with belt clip
    • Mils/Microns switchable
    • Continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
    • PosiSoft Solutions for viewing, analyzing, and reporting data
    • Screen Capture – record and save image into USB flash memory for record keeping and review
    • Proven non-destructive ultrasonic technique conforms to ASTM D6132- Standard Test Method for Nondestructive Measurement of Dry Film Thickness of Applied Organic Coatings Using an Ultrasonic Gage; and ISO 2808 – Paints and varnishes – Determination of film thickness

    DeFelsko PosiTector 200 Probe with a Standard Gauge features:

    • Storage up to 1,000 readings
    • USB-mass storage, data transfer to computer or PosiSoft.net online application

    Additional Features of the PosiTector 200 Probe with an Advanced Gauge:

    • Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system
    • Graphics mode with screen capture for detailed analysis of the coating system
    • Storage of 250,000 readings in up to 1,000 batches and sub-batches
    • Touchscreen keyboard for quickly renaming batches, adding notes, and more
    • Bluetooth Wireless Technology for data transfer to a computer or optional portable printer

    Stone Tucker Instruments is able to recertify your PosiTector 200 Probes.

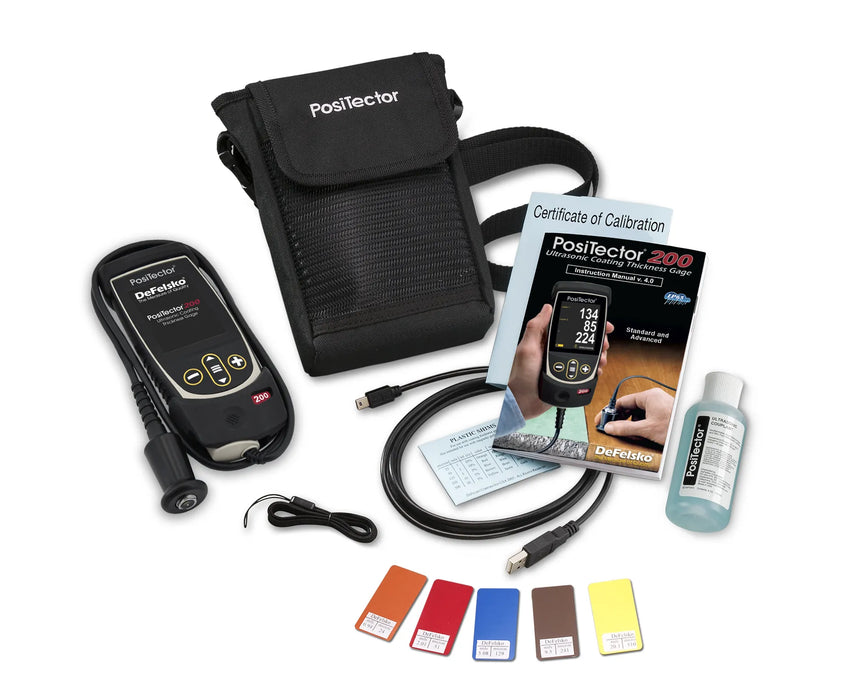

  • DeFelsko’s PosiTector 200 Probes comes with:

    • 200 Probe
    • Ultrasonic Gel
    • Precision Plastic Shims
    • Protective Rubber Cap
    • PosiSoft Software
    • USB Cable
    • Wrist Strap
    • Instruction Manual
    • Two Year Warranty
    • Long Form Certificate of Calibration traceable to NIST or PTB

  • Please click here to view the DeFelsko PosiTector 200 Datasheet
