DeFelsko PosiTest OTL Oven Temperature Logger Kits

DeFelsko PosiTest OTL Oven Temperature Logger Kits

by DeFelsko
Contact for availability
$1,419.00 - $4,256.00
$1,419.00
$1,419.00 - $4,256.00
$1,419.00
  • Overview
  • Product Information
  • Accessories
  • Resources

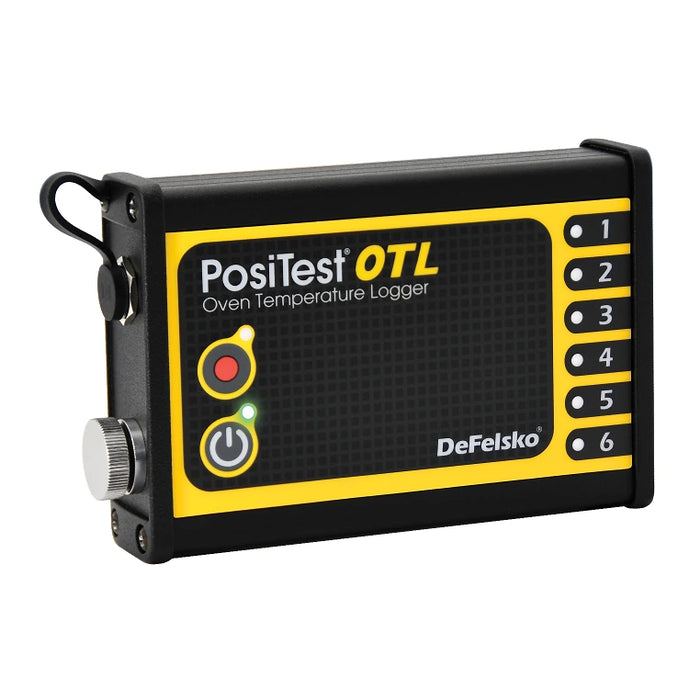

  • DeFelsko’s PosiTest OTL Oven Temperature Logger for measuring and recording oven temperature profiles.

  • DeFelsko PosiTest OTL Oven Temperature Logger with barrier box and holder is ideal for measuring oven temperature profiles. Two kit options are available, with the OTL XT featuring an enhanced holder with heatsink for greater endurance at high temperatures.

    Features:

    • Simple, easy-to-use interface
    • 6 k-type thermocouple ports (channels)
    • Measures and records up to 40,000 datasets (240,000 readings) in up to 6 batches
    • Records measurements every 2 seconds for up to 22 hours of recording time
    • Cure Index compares supplier’s cure specifications to actual oven and part temperatures to ensure a proper cure
    • Download, view, and analyze batch data using PosiSoft Desktop Software
    • Export .csv files for easy import into spreadsheets
    • Bright LEDs indicate logger status at a glance

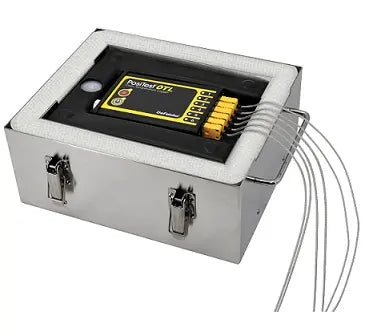

    • High temperature stainless steel barrier box with fibreglass insulation for long run times at high temperature (contains no silicone)
    • Certificate of Calibration showing traceability to NIST included

    Specifications:

    Channels 6 K-type non-grounded thermocouples
    Thermocouple Measurement Range

    -100 to 1000°C

    -148 to 1832°F
    Logger Operating Temperature Range

    0 to 70° C

    32 to 158° F
    Logger Accuracy

    ±0.5° C

    ±0.9° F
    Resolution

    0.1° C

    0.1° F
    Memory

    40,000 Datasets

    (each Dataset consists of up to 6 channels)
    Sample Interval 2 seconds (fixed)
    Power Source (2) AAA Batteries
    Battery Life 30 hours (recording time)

    DeFelsko PosiTest OTL two kit configurations:

    Temp PosiTest OTL Kit PosiTest OTL XT Kit
    150°C (302°F) 90 minutes 300 minutes
    200°C (392°F) 65 minutes 200 minutes
    250°C (482°F) 50 minutes 140 minutes
    300°C (572°F) not recommended 100 minutes

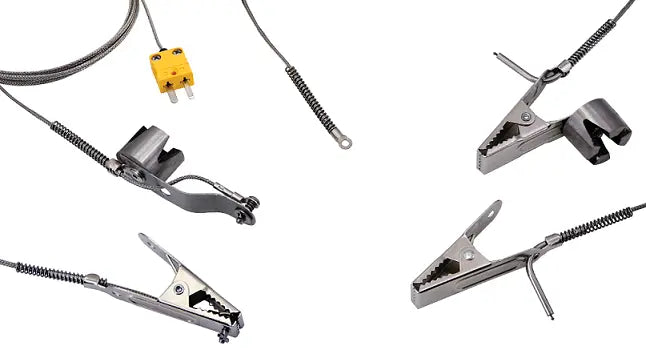

    There are a wide variety of surface and air temperature probes available for use with the DeFelsko PosiTest OTL Oven Temperature Logger. Please contact us for the full range of probes available.

    The DeFelsko OTL Oven Logger can be purchased in a Kit or as a standalone unit.

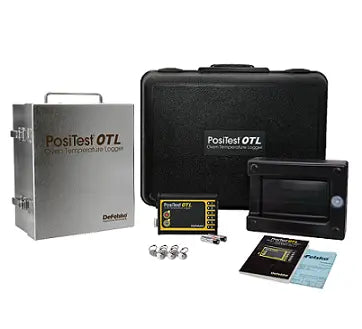

  • The DeFelsko PosiTest OTL Kits comes with:

    • Temperature Logger
    • Stainless Steel High Temperature Barrier Box
    • Choice of Holder

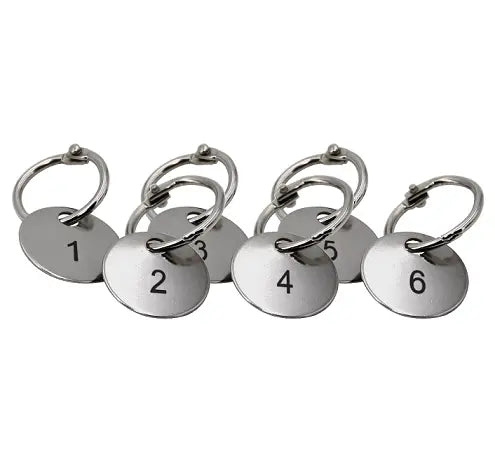

    • 6 Engraved Probe ID Tags
    • (2) AAA Batteries
    • Instructions
    • Certificate of Calibration traceable to NIST
    • Carrying Case
    • USB Cable
    • Two Year Warranty

  • Please click here to view the DeFelsko PosiTest OTL Datasheet
