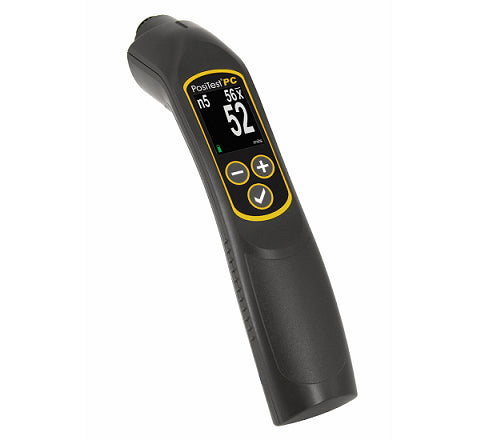

DeFelsko PosiTest PC Powder Checker

DeFelsko PosiTest PC Powder Checker

by DeFelsko
Contact for availability
$3,815.00 - $3,815.00
$3,815.00
$3,815.00 - $3,815.00
$3,815.00
  • Overview
  • Product Information
  • Accessories
  • Resources

  • DeFelsko’s PosiTest PC Powder Checker Non-contact Uncured Powder Thickness Gauge affordably measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness. This helps eliminate both waste of excess material and costly rework of inadequate application thickness. PC Powder Checker allows the paint shop to control powder consumption to ensure adequate coverage of the coated part while reducing material wastage.

  • PosiTest PC Powder Checker uses ultrasound technology for non-contact measurement of uncured powder thickness to predict the cured coating thickness. One-handed operation and no wires means nothing to drag through and mess up applied powder prior to baking. PC Powder Checker measures between 0.8 and 4.0 mils of cured coating thickness, at a distance of 3/4″ (19 mm) from the surface of applied powder, and is ideal for moving lines and swinging parts.

    Features:

    • Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
    • No calibration adjustment required for most powders
    • Target Grid simultaneously displays distance to the part and alignment, making measurements easy
    • Solvent, acid, oil, water and dust resistant — ideal for harsh powder coating environments
    • Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
    • Mils/microns switchable
    • Storage of 999 readings with onscreen averaging
    • Stored readings can be downloaded to PosiSoft Desktop software
    • Scan Mode continuously takes measurements – ideal for analyzing large areas
    • USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC

    Specifications:

    Range¹ 20 – 100 µm/0.8 – 4.0 mils
    Resolution 1 µm/0.1 mil
    Accuracy + 5 µm/+ 0.2 mils
    Measurement Time 1-3 seconds
    Measurement Distance to Powder Surface 19 mm/0.75 inch
    Measurement Area 2 mm/0.8 inch

    ¹based on TGIC-Free polyester powder

    Conforms to ASTM D7378, “Standard Practice for Measurement of Thickness of Applied Coating Powders to Predict Cured Thickness.”

  • The DeFelsko PosiTest PC Powder Checker comes with:

    • PC Powder Checker Gauge
    • Probe Zero Fixture
    • 4x AAA Batteries
    • Flathead Screwdriver
    • Instructions
    • Replacement Probe Screen
    • Protective Lens Shield
    • USB Cable
    • Hardshell Case
    • Two Year Warranty

  • Please click here to view the DeFelsko PC Powder Checker Datasheet
