DeFelsko’s PosiTector SST Soluble Salt Tester for measuring soluble salt contamination on metal surfaces. PosiTector SST is a conductivity probe designed specifically for the Bresle Method of salt testing, and is compatible with any Bresle Patch, including DeFelsko’s PosiPatch™ and the proprietary DeFelsko Patch.
-
DeFelsko PosiTector SST Soluble Salt Tester is the first conductivity probe designed specifically for measurement of total soluble salts using the Bresle Method according to ISO 8502 – 6: Preparation of steel substrates before application of paints and related products — Tests for the assessment of surface cleanliness — Extraction of soluble contaminants for analysis — The Bresle Method.
Salt contamination on surfaces or in blast media can cause degradation of the surface over time, and result in early coatings failure. Detection of soluble salts prior to coatings application is necessary to allow the paint contractor to remove salt contamination from the surface before applying protective coatings. The PosiTector SST Conductivity Probe features a test cell optimized for the range, resolution, and test volume of the Bresle test method for soluble salt contamination. PosiTector SST measures the temperature, volume, and change in conductivity of the sample, calculates surface density, and records the time and duration of the test, in accordance with ISO 8502-6 test method.
DeFelsko's PosiTector SST is ideal for:
- testing substrates for the presence of soluble salts in accordance with ISO 8502-6,9 (Bresle method)
- testing blast media in accordance with ASTM 4940 and ISO 11127-6* (determination of water-soluble contaminates in abrasives by conductivity measurement)
- testing the conductivity of water within the range of 0 – 500 µs/cm
*ASTM 4940 – Standard Test Method for Conductimetric Analysis of Water Soluble Ionic Contamination of Blast Cleaning Abrasives
ISO 11127-6 – Preparation of steel substrates before application of paints and related products — Test methods for non-metallic blast-cleaning abrasives — Part 6: Determination of water-soluble contaminants by conductivity measurement
PosiTector Soluble Salt Tester probe can be used with either the Standard or Advanced PosiTector gauge body, and with virtually any Bresle patch.
Features of the SST Probe:
- SST probe specifically designed to measure soluble salts in accordance with ISO 8502-6, 9
- On-screen easy 1-2-3 user interface walks users through the Bresle test method
- Displays test duration, sample temperature, conductivity (µs/cm) and surface density (mg/m² or µg/cm²)
- Tracking reporting of test duration, (total time of contact between solvent & substrate) as required by ISO 8502-6
- Automatic calculation of surface density with adjustments for different patch volumes; works with any Bresle-type patch
- Recording of sample temperature as required by ISO 8502-6
- Long-form certificate of calibration traceable to NIST
- Includes certified conductivity standard (calibration solution) to verify probe accuracy; certificate included
- Automatic temperature normalization
- Every stored measurement is date & time stamped
- Screen Capture saves screen images for record-keeping & review
- High-contrast, back-lit reversible colour LCD display
- Selectable display languages
- Rugged, stainless steel electrodes; ideal for industrial environments
- Software updates via web keep your gauge current
- Compatible with PosiSoft Desktop v4, PosiSoft.net, and PosiTector App for Apple & Android mobile devices
Stone Tucker Instruments is able to recertify your PosiTector 200 Probes.
-

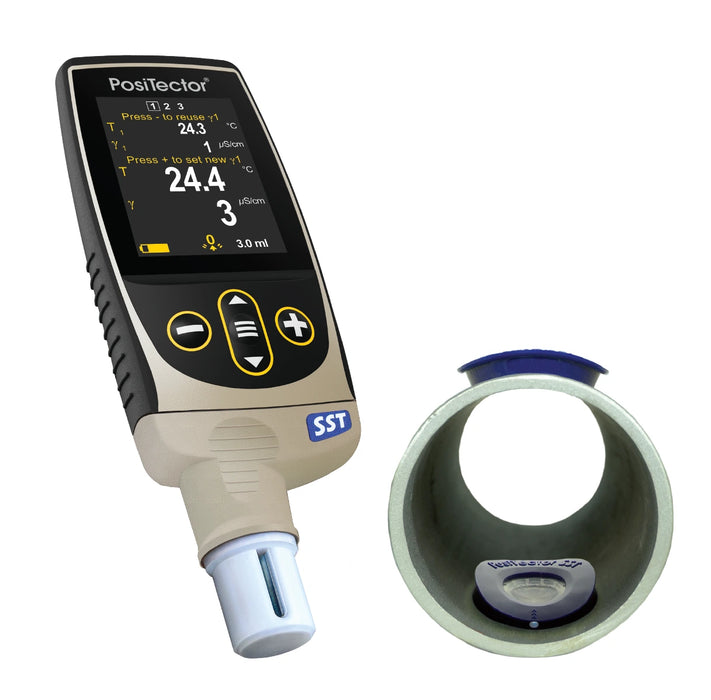

The DeFelsko PosiPatch SST Kit comes with:
- DeFelsko SST Probe
- 84 μm Conductivity Solution

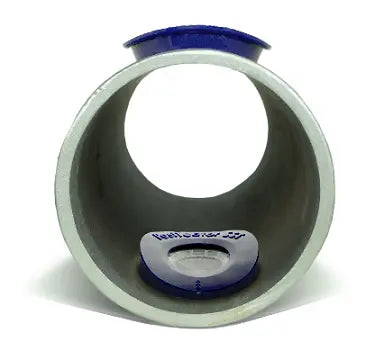

- PosiPatch (5)

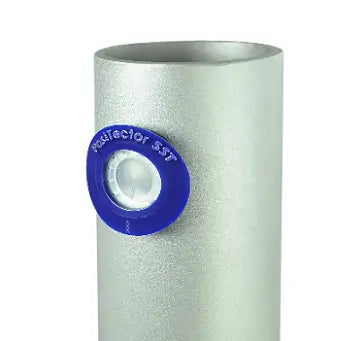

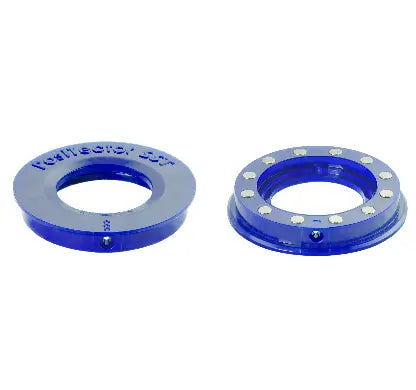

- Flexible Magnetic Ring
- Syringe with Plastic Tip (2)
- 500 mL DI Water
- Graduated Cup (5)
- Hardshell Carrying Case
