DeFelsko PosiTest Gauges

DeFelsko PosiTest Gauges

by DeFelsko
$515.00 - $515.00
$515.00
$515.00 - $515.00
$515.00
  • Product Information
  • Accessories
  • Resources

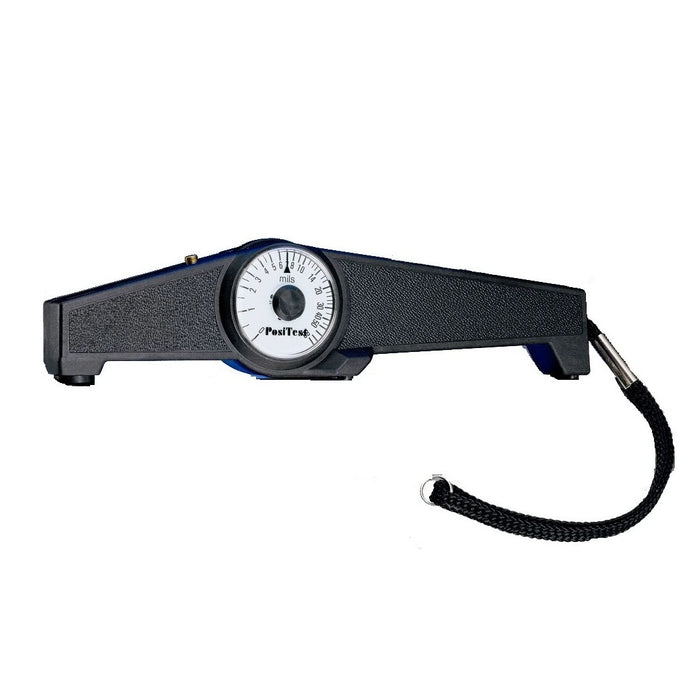

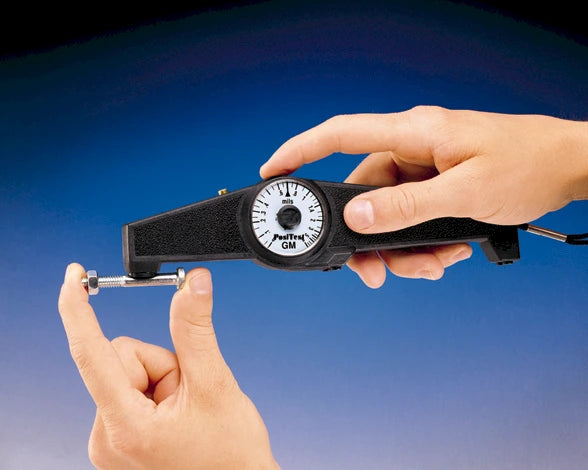

  • DeFelsko PosiTest Coating Thickness Gauges are an easy-to-use magnetic pull-off gauge (banana gauge) for measuring cured coatings on steel. The PosiTest Gauges are explosion proof, making it safe for use in refineries and similar applications.

    DeFelsko PosiTest Coating Thickness Gauges offer a dial indicator in mils or microns, with scales for thinner non-magnetic coatings like galvanizing, or thicker coatings up to 80 mils on steel. PosiTest Gauges feature a rugged housing that is impact, water, acid, and solvent-resistant. V-grooves on the probe end permit measurement of coatings on cylindrical objects. PosiTest Gauges are lightweight and compact, and is balanced so that it works in any position.

    Features:

    • Wear-resistant carbide probe for long life and continuous accuracy
    • Easy calibration adjustment
    • Housing not affected by mechanical shock, water, acid, or solvents
    • Design ensures instrument stability for reliable readings
    • Explosion proof and refinery safe
    • Visual and audible indicators when reading is established
    • Compact, lightweight, precisely-balanced independent of gravity – can be used in any position
    • Go/no-go button can be preset for rapid measurement
    • One-finger operation

    PosiTest is available in four scales:

    PosiTest F Range:

    0 – 2000 microns; tolerance of ± 5 microns up to 100 microns,

    ± 5% of reading over 100 microns
    PosiTest FM Range:

    0 – 80 mils; tolerance of ± 0.2 mils to 4 mils,

    ± 5% of reading over 4 mils
    PosiTest G Range:

    0 – 200 microns; tolerance ± 1 micron up to 20 microns,

    ± 5% of reading over 20 microns
    PosiTest GM Range:

    0 – 8 mils; tolerance ± .04 mils up to .8 mils,

    ± 5% of reading over 0.8 mils

    Stone Tucker Instruments is able to recertify your DeFelsko PosiTest Coating Thickness Gauges, as well as all other brands of magnetic pull-off coating thickness gauges (banana gauges).

  • The DeFelsko PosiTest Gauges come with:

    • Wrist Strap
    • Neck Strap
    • Instructions
    • Leather Case
    • Certificate of Calibration traceable to NIST or PTB

  • Please click here to view the DeFelsko PosiTest Gauges Datasheet
