DeFelsko PosiTest Manual Adhesion Tester

DeFelsko PosiTest Manual Adhesion Tester

by DeFelsko
Contact for availability
$3,300.00 - $3,595.00
$3,300.00
$3,300.00 - $3,595.00
$3,300.00
  • Overview
  • Product Information
  • Accessories
  • Resources

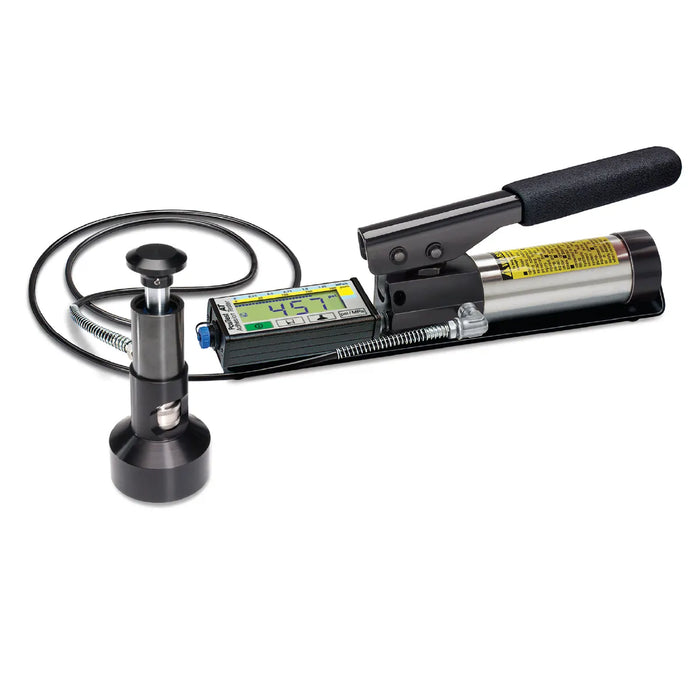

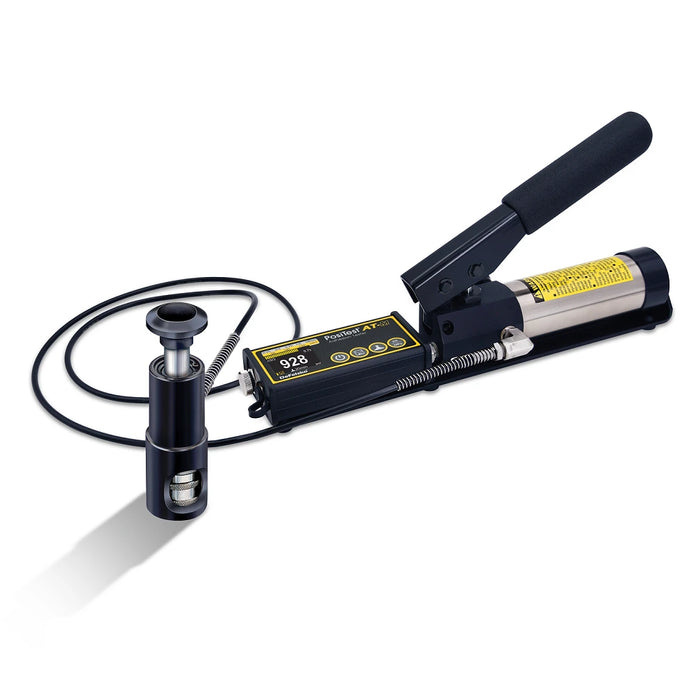

  • DeFelsko PosiTest AT-M Manual Adhesion Tester measures coating adhesion on a variety of substrates. The heavy-duty manual hydraulic pump is designed to apply smooth and continuous pull-off pressure with a single stroke. Pull-off pressure is displayed in psi or MPa on a large digital indicator.

  • The PosiTest AT-M Manual Adhesion Tester features self-aligning dollies for reliable pulls on uneven surfaces, and pull-rate indicator for greater accuracy and conformance to international standards. PosiTest Manual Adhesion Tester comes with a rechargeable NiMh battery. In addition, both models of PosiTest Adhesion Testers are rated for water and dust ingress protection to IP65.

    An optional 50 mm Accessory Kit is available for adhesion testing of lower bond-strength finishes, including coatings on wood, concrete, and plastic. For 0 – 500 psi range, the larger surface area of the dolly provides improved precision and repeatability.

    Features:

    • Portable, hand-operated instrument requires no outside power source; ideal for lab or field use
    • Easily select dolly sizes, change measurement units, or store readings with the touch of a button
    • Automatic calculation of pressure based on dolly size; no conversion charts required
    • Self-Aligning Dolly enables accurate measurements on smooth or uneven surfaces
    • Inexpensive, single-use dollies eliminate cleaning for re-use, and can be kept for a permanent record

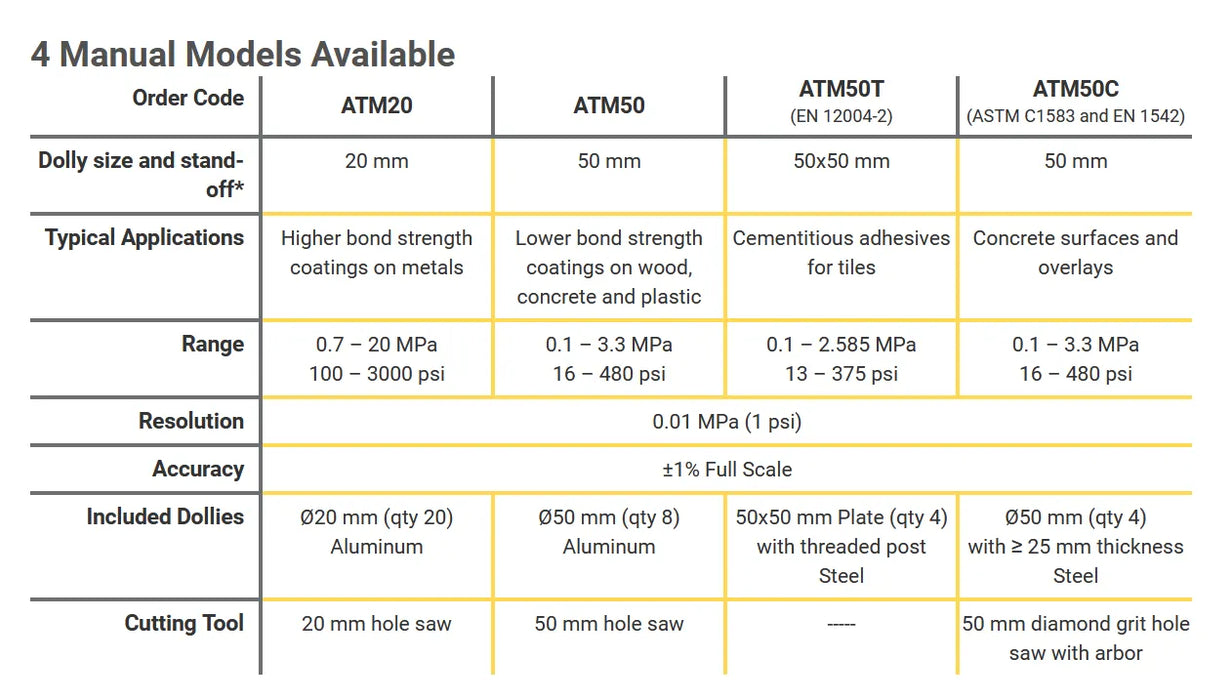

    • 10, 14, 20, or 50 mm dollies maximize capability and accuracy across a wide range of bond strengths:
      • 10 mm: 10,000 psi (70 MPa)
      • 14 mm: 6,000 psi (40 MPa)
      • 20 mm: 3,000 psi (20 MPa)
      • 50 mm: 480 psi (3.3 MPa)
      • 50×50 mm: 375 psi (2.585 MPa)
    • Every PosiTest Adhesion Tester pressure system is calibrated and certified to + 1% accuracy using an NIST-traceable load cell
    • Conforms to national and international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others
    • Wireless connection to your smart device using free PosiTector mobile app to create and share customized, professional PDF reports
    • Compatible with PosiSoft Desktop, PosiTector App, PosiSoft.net, and PosiSoft USB Drive
    • Universal AC-adaptor battery charger

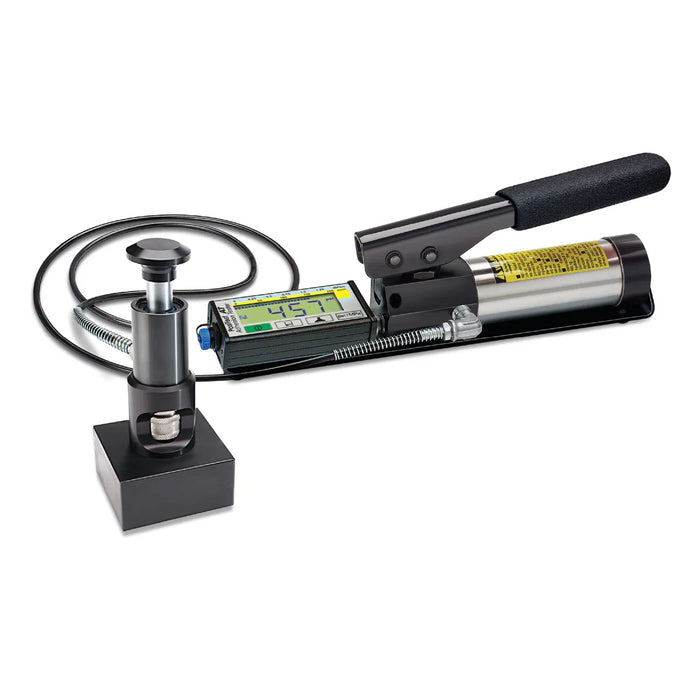

    In addition, Conversion Kits are available for all dolly types: 20 mm, 50 mm low bond-strength, 50 x 50 mm Tile Conversion Kit, and 50 mm C1583 Conversion Kit. The addition of any conversion kit to the allows the PosiTest AT-A to be used in a broad range of applications.

    Stone Tucker Instruments is able to certify your PosiTest Manual Adhesion Tester.

  • The PosiTest AT-M Manual Adhesion Tester Kit comes with:

    • PosiTest AT-M Manual Adhesion Tester
    • Rechargeable NiMH Battery with Charger
    • Dollies with Stand-off and Cutting Tool
    • Abrasive Pad
    • Adhesive with Mixing Sticks and Palettes
    • Cotton Swabs
    • USB Cable
    • PosiSoft Software
    • Instruction Booklet and Video
    • Shoulder Strap
    • Certificate of Calibration traceable to NIST
    • Carrying Case

  • Please click here to view the DeFelsko PosiTest Adhesion Tester Datasheet
