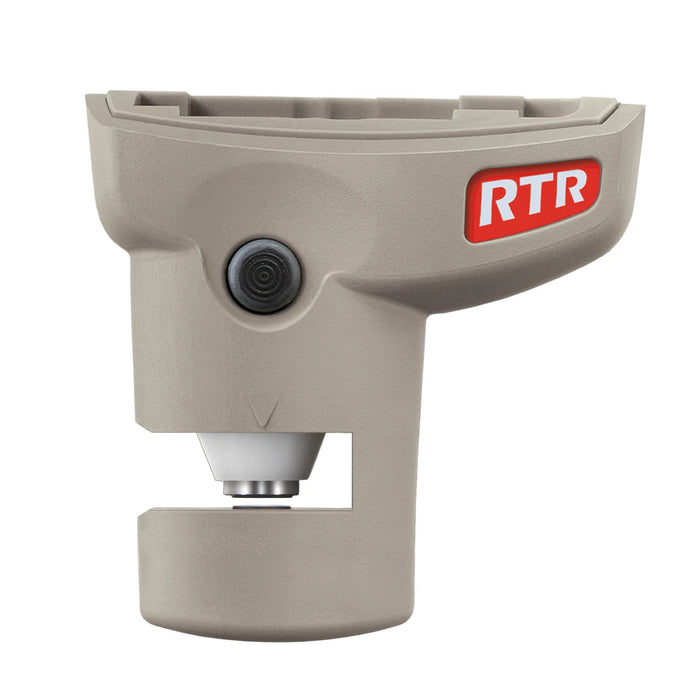

DeFelsko PosiTector RTR-H Probe

DeFelsko PosiTector RTR-H Probe

by DeFelsko
$640.00 - $640.00
$640.00
$640.00 - $640.00
$640.00
  • Overview
  • Product Information
  • Accessories
  • Resources

  • DeFelsko PosiTector RTR-H Replica Tape Reader measures surface profile impressions taken with Testex Tape. The PosiTector RTR H Replica Tape Reader connects to current-model PosiTector gauge bodies, making it an economical addition to the PosiTector brand of coatings inspection instruments. Simply slide off the probe you are using, and slide on the PosiTector RTR probe.

  • Measure peak-to-valley height as easily as with a Testex spring micrometer, but with the added bonus of storage and download of surface profile values to PC, or other digital storage device, and incorporated into inspection reports.

    PosiTector RTR-H Replica Tape Reader measures Testex Press-o-Film Replica Tape with greater accuracy than conventional dial spring micrometers. The 2-mil non-compressible Testex tape substrate is automatically subtracted from surface profile measurements, and measurements are stored in the gauge for download to computer or upload to a mobile device or PosiSoft.net cloud-based application.

    Available in Standard or Advanced gauge models, the PosiTector RTR-H Replica Tape Reader offers the same great features of all PosiTector gauges:

    • Automatically subtracts the 50.8 μm (2 mil) incompressible substrate from all readings
    • Minimizes inspector workload by reducing the number of replicas needed to ensure accuracy
    • Solvent, acid, oil, water and dust resistant – weatherproof
    • Measures height (H) and linearized height (HL) [1]
    • Mils/Microns switchable
    • Check shim provided to verify accuracy
    • Continually displays/updates average, standard deviation, min/max height and number of readings
    • Every stored measurement is date and time stamped
    • Screen Capture – record and save image into USB flash memory for record keeping and review
    • PosiSoft Solutions for viewing, analyzing & reporting data
    • Conforms to ASTM D4417, NACE RP0287, SSPC PA 17, and ISO 8503-5

  • The PosiTector RTR-H comes complete with:

    • Stainless Steel Burnishing Tool
    • 5 Cleaning Cards
    • Check Shims
    • Surface Cleaning Putty
    • Protective Rubber Holster
    • Wrist Strap
    • 3 AAA Batteries
    • Instructions
    • Carrying Case with Shoulder Strap
    • USB Cable
    • PosiSoft Software
    • Two Year Warranty
    • Certificate of Calibration traceable to NIST

  • Please click here to view the DeFelsko PosiTector RTR-H Datasheet
