DeFelsko PosiTector SHD Shore Hardness Durometer

DeFelsko PosiTector SHD Shore Hardness Durometer

by DeFelsko
$831.00 - $831.00
$831.00
$831.00 - $831.00
$831.00
  • Overview
  • Product Information
  • Accessories
  • Resources

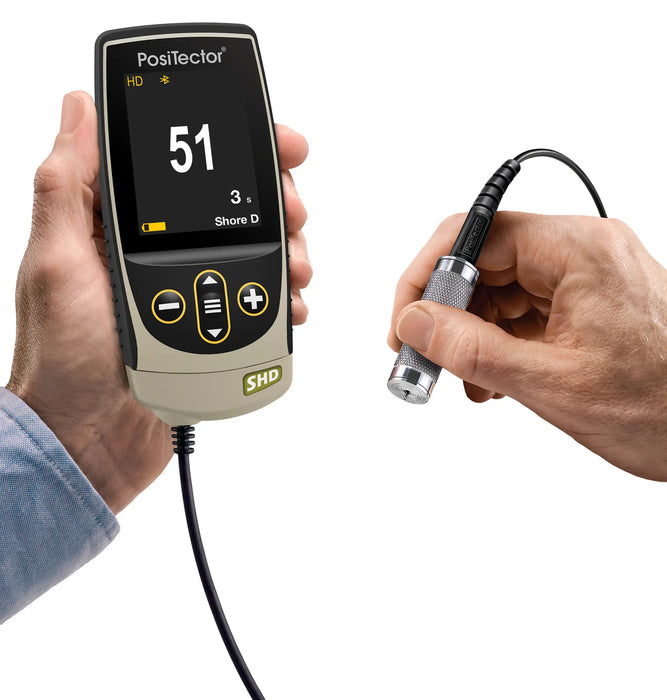

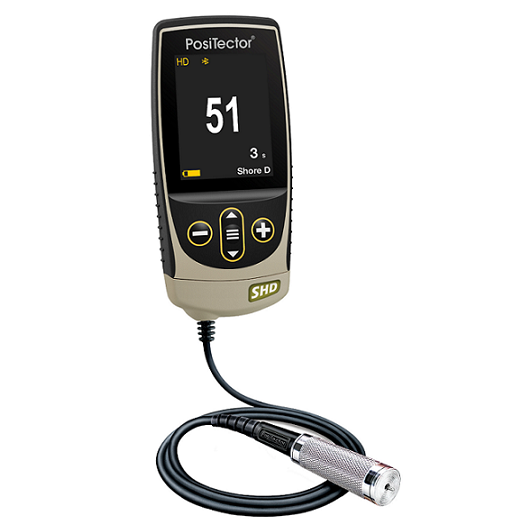

  • DeFelsko’s PosiTector SHD Shore Hardness Durometer handheld electronic instrument that measures the indentation hardness of non-metallic materials.

  • DeFelsko PosiTector SHD Shore Hardness Durometer measures the hardness of non-metallic materials according to the Shore A scale or Shore D scale. Couple DeFelsko’s universal Standard or Advanced PosiTector bodies with a Shore A or Shore D scale durometer probe, to measure the hardness of soft to hard materials or medium to harder materials, and store the readings for evaluation or incorporation into inspection reports.

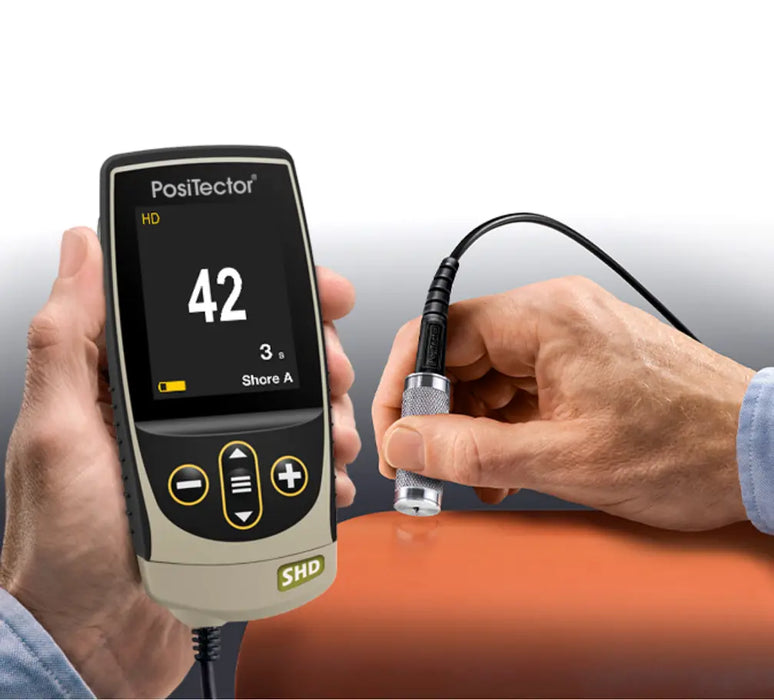

    • Shore A – soft to hard materials, including soft rubber, elastomers, neoprene, silicone, etc.
    • Shore D – medium to harder materials, such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc.

    Features of the PosiTector SHD Shore Hardness Durometer Probe with a Standard Gauge Body:

    • Fast measurement speed—60+ readings per minute
    • Enhanced FAST mode—90+ readings per minute for quick inspection
    • Ready to measure—no adjustment required for most applications
    • Flashing display—ideal in a noisy environment
    • RESET feature instantly restores factory settings
    • Auto Ignore mode ignores hardness readings below 20 and above 90 per international standards
    • Hi-RES mode increases displayed resolution to 0.1
    • Built-in temperature compensation ensures measurement accuracy
    • Extended cables available (up to 75 m/250 ft) for remote measuring

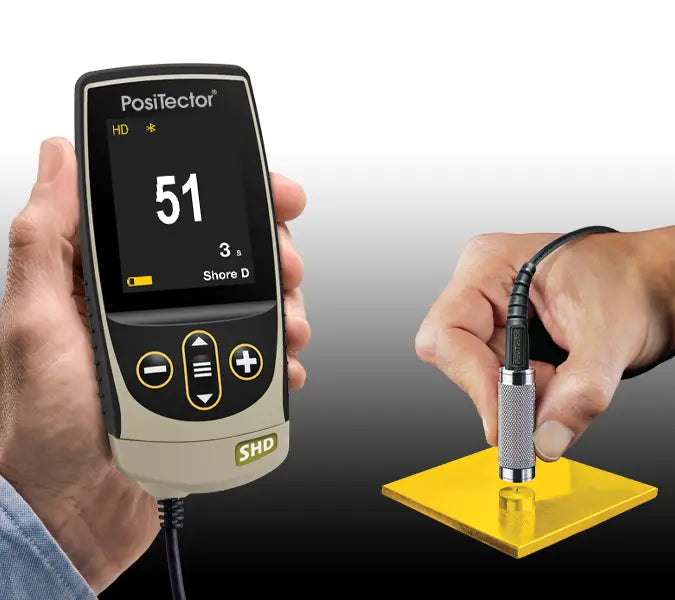

    • Includes test block to verify operation
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
    • Every stored measurement is date and time stamped
    • Storage of up to 250 readings
    • Includes PosiSoft suite of software for viewing and reporting data

    DeFelsko PosiTector SHD Probe with Advanced Model includes the above features plus:

    • Storage of 250,000 readings in up to 1,000 batches and sub-batches
    • Live graphing of measurement data
    • Batch/Reading annotation—add notes and change batch names with onscreen QWERTY keyboard
    • Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches

    PosiTector SHD Shore Hardness Durometers conforms to ASTM D2240, ISO 868, ISO 7267, ISO 7619, and DIN 53505 Standards.

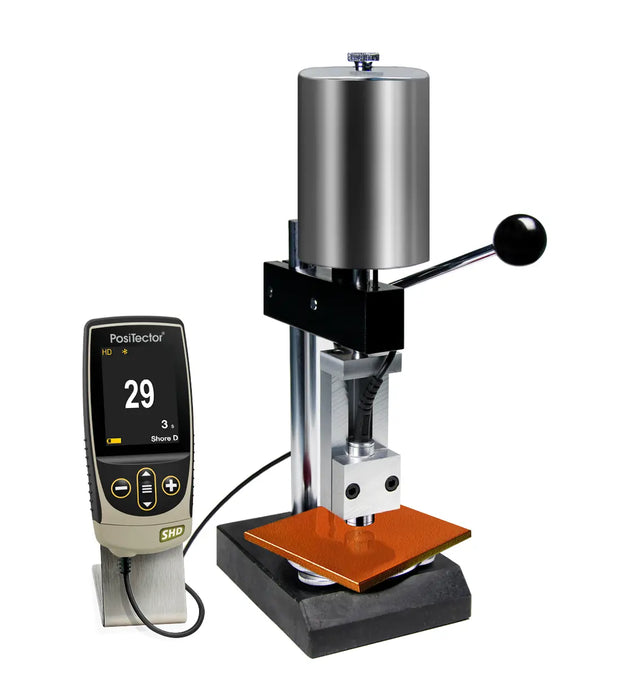

    Like all PosiTector gauges, the Shore Hardness Durometer is supplied with NIST-traceable Calibration Certificate. The SHD can be used in-hand, or with a Durometer Test Stand to ensure consistent probe placement and applied force.

  • The DeFelsko PosiTector SHD-A comes complete with:

    • SHD-A Probe
    • Test Block
    • Protective Rubber Holster with Belt Clip
    • Wrist Strap
    • 3 AAA Alkaline Batteries
    • Instructions
    • Protective Lens Shield
    • Carrying Case with Shoulder Strap
    • Certificate of Calibration traceable to NIST or PTB
    • USB Cable
    • PosiSoft Software
    • Two Year Warranty

    The DeFelsko PosiTector SHD-D comes complete with:

    • SHD-D Probe
    • Test Block
    • Protective Rubber Holster with Belt Clip
    • Wrist Strap
    • 3 AAA Alkaline Batteries
    • Instructions
    • Protective Lens Shield
    • Carrying Case with Shoulder Strap
    • Certificate of Calibration traceable to NIST or PTB
    • USB Cable
    • PosiSoft Software
    • Two Year Warranty

    Optional Accessories (available in Shore A and Shore D):

    • Test Blocks
    • Durometer Test Stands
    • PosiTector SHD Universal Adaptor

  • Please click here to view the DeFelsko PosiTector SHD Datasheet
