DeFelsko PosiTector UTG Ultrasonic Thickness Probes

DeFelsko PosiTector UTG Ultrasonic Thickness Probes

by DeFelsko
$1,206.00 - $2,382.00
$1,206.00
$1,206.00 - $2,382.00
$1,206.00
  • Overview
  • Product Information
  • Accessories
  • Resources

  • DeFelsko PosiTector UTG Ultrasonic Thickness Probes measures material thickness through paint, linings, and coatings, without having to remove the coating. Also ideal for measuring on sandblasted materials or other applications where a durable wear-face is required.

    Options for DeFelsko UTG Probes:

    DeFelsko PosiTector UTG C Ultrasonic Thickness Gauge is a 5 MHz dual element transducer with a cabled probe.

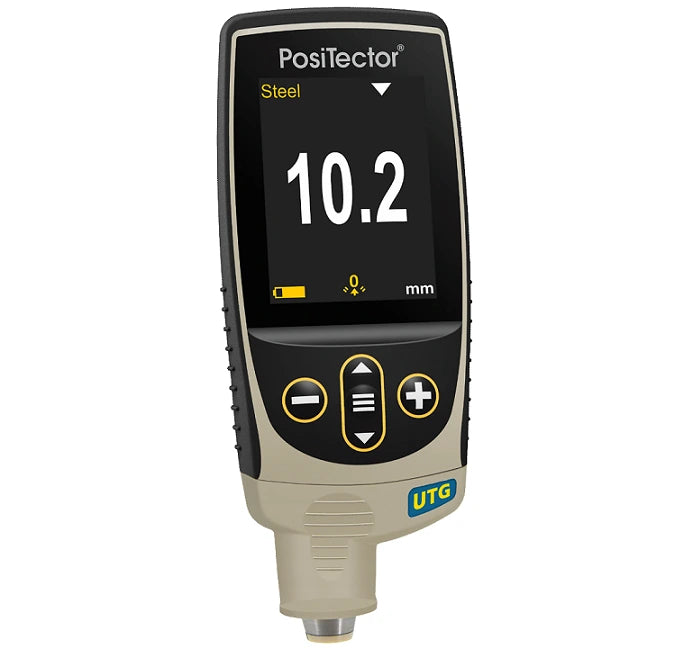

    DeFelsko PosiTector UTG CA Ultrasonic Thickness Gauge is a 5 MHz dual element transducer with an integral probe.

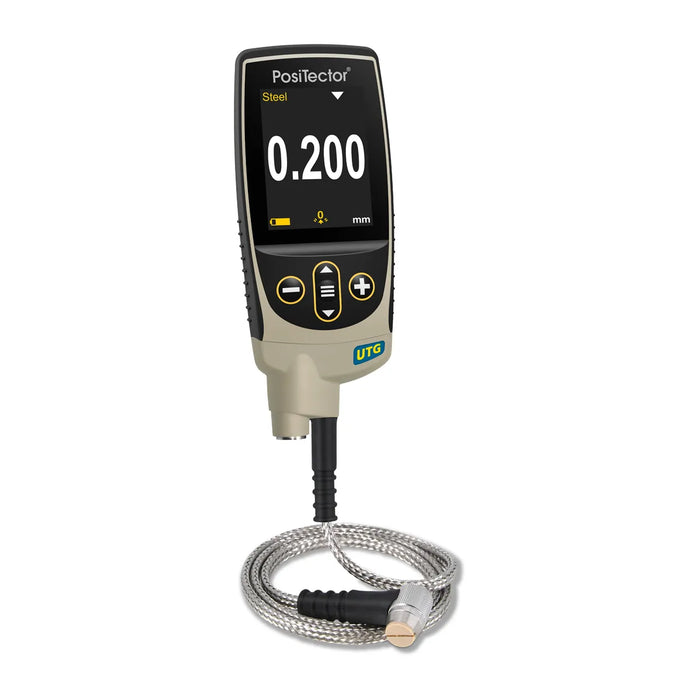

    DeFelsko PosiTector UTG CX Ultrasonic Thickness Gauge is a 5 MHz dual element transducer with a cabled probe. This probe is ideal for attenuative materials such as cast iron.

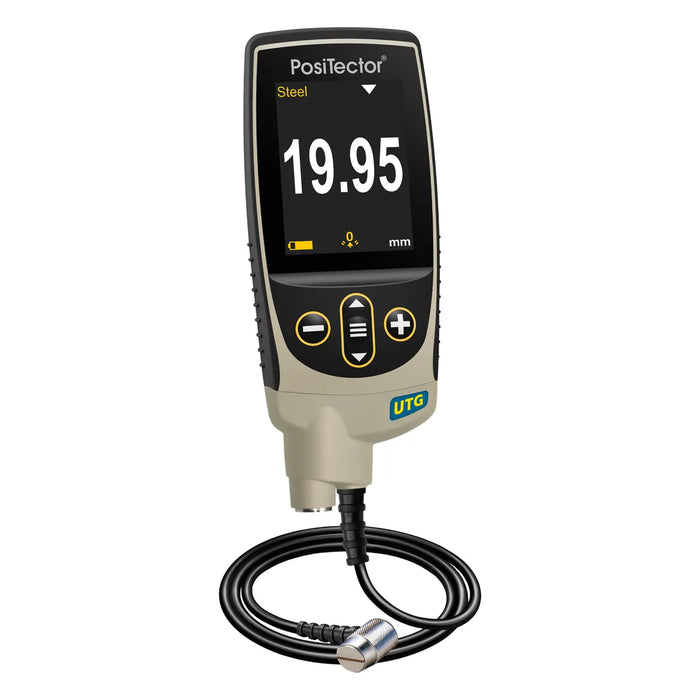

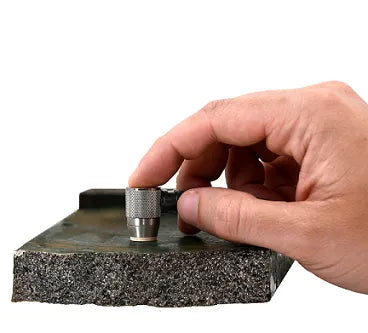

    DeFelsko PosiTector UTG CLF Ultrasonic Thickness Gauge is a 2.25 MHz dual element transducer with a cabled probe.

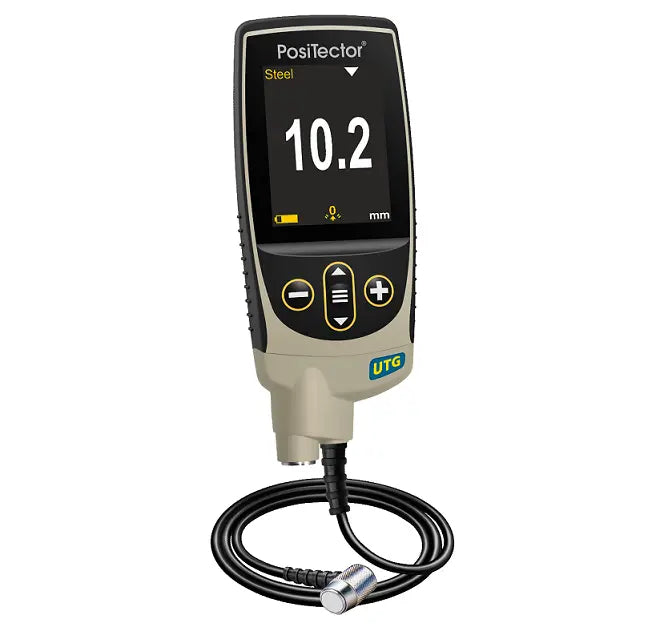

    DeFelsko PosiTector UTG M Ultrasonic Thickness Gauge is a 5 MHz contact probe with wear resistant alumina probe tip and a cabled probe. This unit features the ability to toggle between Single and Multiple-Echo modes.

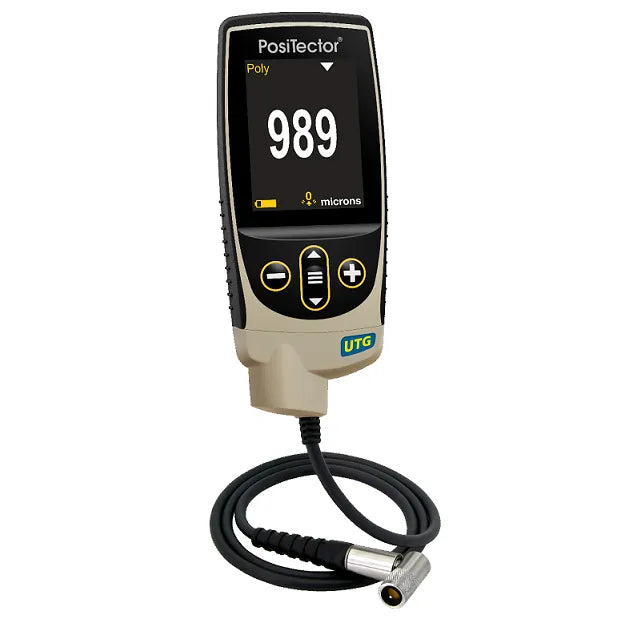

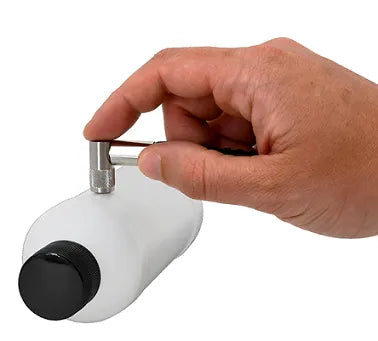

    DeFelsko PosiTector UTG P Ultrasonic Thickness Gauge is a 15 MHz Single Element Delay Line with a cabled probe. This unit is ideal for high resolution measurements on thin materials including metals and plastics.

  • Features:

    • Automatically disregards the coating when measuring wall thickness, eliminating the need to remove and repair paint in order to evaluate the surface
    • Toggles easily between multiple-echo and single-echo modes
    • Resolution of 0.001″ (0.01 mm)
    • Accuracy to ±0.001″ (±0.03 mm)
    • Single echo measuring range 0.100″ to 5.000″ (2.50 to 125.00 mm)*
    • Pre-programmed Velocities – simply select from a list of common materials or enter your own with ease
    • Measures up to 5 inches on uncoated carbon steel
    • Bi-colour indicator light – ideal in a noisy environment
    • RESET feature instantly restores factory settings
    • Solvent, acid, oil, water, and dust resistant-meets or exceeds IP5X
    • Conforms to national and international standards including ASTM E797
    • HiLo Alarm – dual-tone alarm and bi-color indicator light audibly and visibly alerts when measurements exceed operator selected limits
    • Built-in Clock – date and time stamps each stored measurement
    • USB and IR ports for downloading to a PC, printer or data collector
    • Single or two point adjustment
    • Imperial/Metric switchable
    • Certificate of Calibration showing traceability to NIST
    • 2 year warranty on both gauge body and probe

    *range is for carbon steel, and depends on surface condition, temperature, and material

    DeFelsko’s Standard Gauge Body features storage of 1,000 readings per probe. DeFelsko’s Advanced Gauge Body features storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches.

    Stone Tucker Instruments is able to recertify your PosiTector UTG Ultrasonic Thickness Gauge.

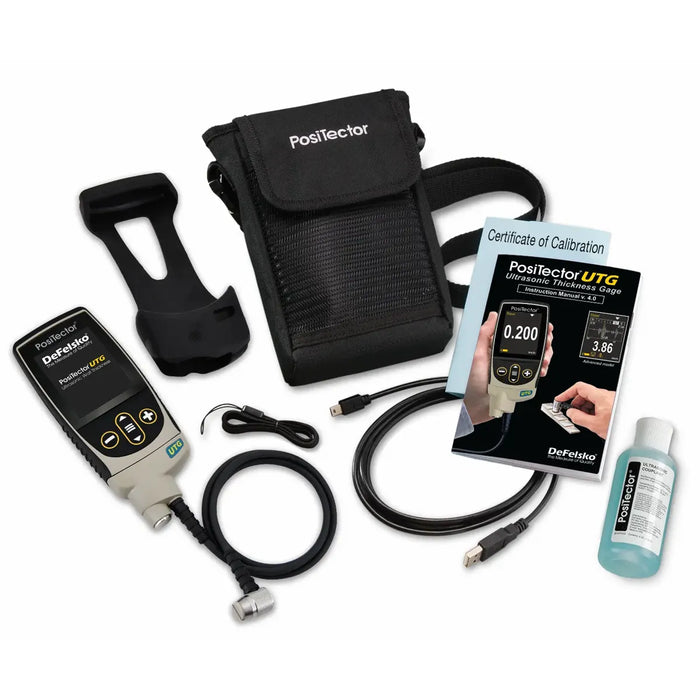

  • The DeFelsko PosiTector UTG Probe includes:

    • UTG Probe
    • Ultrasonic Gel
    • Protective Rubber Holster
    • Wrist Strap
    • 3 AAA Alkaline Batteries
    • Instructions
    • Protective Lens Shield
    • Nylon Carrying Case with Shoulder Strap
    • Long Form Certificate of Calibration traceable to NIST
    • USB Cable
    • PosiSoft Software
    • Two Year Warranty

  • Please click here to view the DeFelsko PosiTector UTG Datasheet
