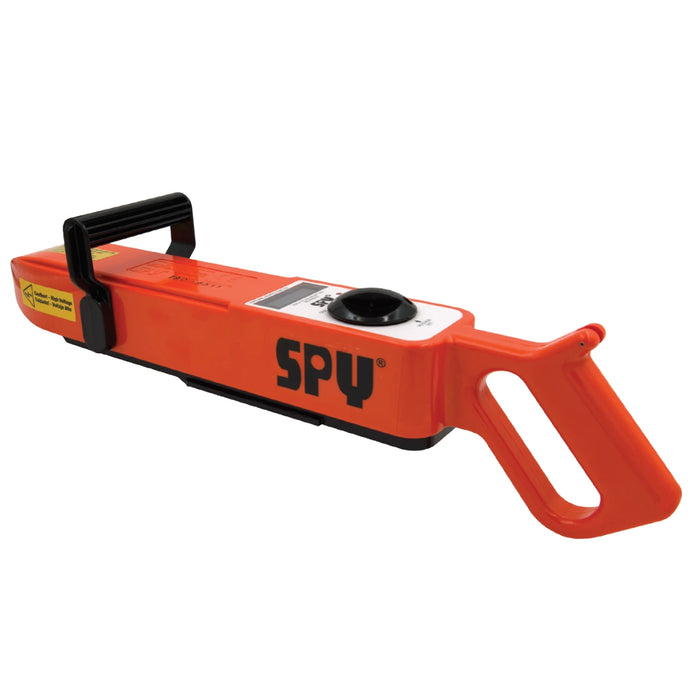

SPY 780 DC High Voltage Holiday Detector

SPY 780 DC High Voltage Holiday Detector

by SPY
Contact for availability
$6,741.45 - $6,741.45
$6,741.45
$6,741.45 - $6,741.45
$6,741.45
  • Product Information
  • Accessories
  • Resources

  • SPY 780 DC High Voltage Holiday Detector to detect pinholes, bubbles, and porosity in FBE Thin Film Coatings was designed for the most extreme conditions.

    Adjust your voltage to any setting for the coating you are inspecting, whatever pipe size, from two inches through sixty inches. Auto regulated voltage allows you to keep your voltage consistent and automatically adjusts under the working load to your set voltage levels.

    The SPY 780 features an integral voltmeter to verify your voltage settings, as well as an alarm and light for holiday indication. Your output voltage is automatically regulated with light cycles off to indicate when a holiday is present. Plus, the ability to adjust your audible alarm for heavy equipment environments.

    Features:

    • Integral voltmeter for verification
    • Alarm and light for holiday indication
    • Output voltage automatically regulated
    • Light cycles off to indicate holiday is present
    • Automatic compensation for moisture
    • Quick release battery for easy installation
    • Easy carry top handle and ergonomic rear handle
    • Lightweight and durable construction with proven leading edge circuitry

    Specifications:

    Voltage Type DC
    Voltage Range 1-5kV
    Voltage Output Accuracy ±5%
    Coating Range 4-50 mils (.10mm-1.27mm)
    Operating Temperature –20°F to 148°F (-20° to 64.5° C)

    For thicker coatings, please see the SPY 785 and SPY 790.

    The SPY 780 Pulse High Voltage Holiday Detector complies with domestic/international standards including AS 3894.1, ANSI/AWWA C203, ANSI/AWWA C214, ASTM D4787, ASTM D5162, NACE RP0274, NACE SP0188, NACE SP0490, NACE TM0186, NACE TM0384

  • The SPY 780 comes with:

    • DC Unit
    • 12V Rechargeable Batteries (2)
    • 12V Charger
    • 50 ft Ground Cable
    • Electrode Wand
    • Spring Connector
    • Shoulder Strap
    • Shoulder Strap Handle Clip
    • Brush Adapter Kit
    • SPY® Screwdriver
    • Carrying Case
    • Operating Instructions
    • Certificate of Calibration traceable to NIST
    • One Year Warranty

  • Please click here to view the SPY Holiday Detectors Datasheet
