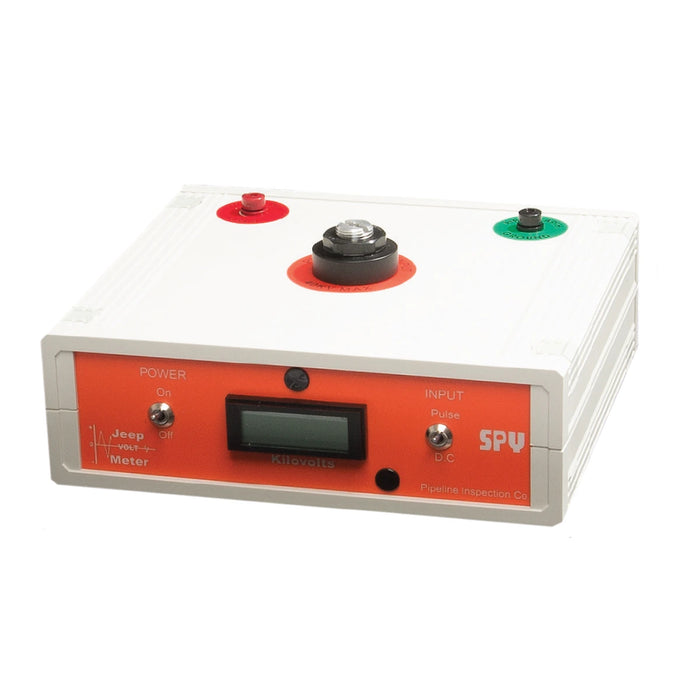

SPY JM Jeep Meter

SPY JM Jeep Meter measures both pulse and DC voltage output with accuracy and versatility.

For pulse type holiday detectors, used to measure shrink sleeves, tapes, and coal tars, the JM will measure up to 40 kV. For DC holiday detectors, used to inspect thin film epoxy coatings, the JM measures up to 5 kV.

Output voltage of your holiday detector is subject to influence by weather conditions, moisture on the pipe, improper grounding, and soil conditions.

Features of the SPY JM Jeep Meter:

• LED display of voltage
• Internally-mounted 9v battery
• Low battery condition LED indicator
• Audible and visual fault alarms
• Large probe head (230 x 40 mm) and wide sponge for faster tests
• Telescopic handle extends to 1.2 m
• Earphone jack allows testing in noisy environments. (earphone not supplied)
• Conforms to ASTM G62 – 07 Standard Test Methods for Holiday Detection in Pipeline Coatings; NACE RP0188-99 Discontinuity (Holiday) Testing Of Protective Coatings

  Specifications:

  Voltage Type	DC/Pulse
  Voltage Output Accuracy	±5%
  Voltage Range	0-35 kV Pulse and 0-5 kV DC
  Operating Temperature	-4°F to 148°F (-20° to 64.5°C)
