Tramex CMEX5 Concrete Moisture Encounter

Tramex CMEX5 Moisture Encounter is for measuring moisture and humidity in concrete floors and slabs, wood, and building materials.

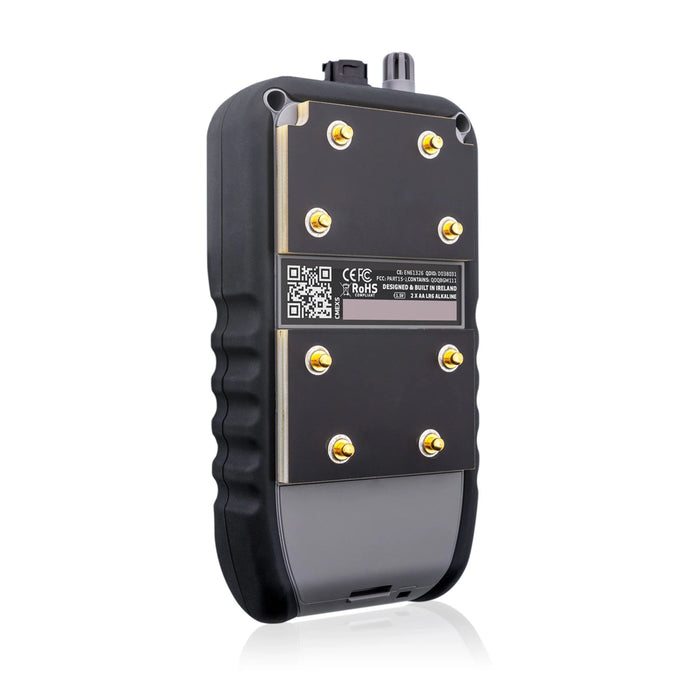

Tramex’ CMEX5 Concrete Moisture Encounter provides instant non-destructive measurement of moisture content in concrete floors and slabs. With a concrete moisture scale of up to 6.9%, CMEX5 is suitable for testing new hardened slab as well as older concrete slab. This unit operates by electrical impedance with 8 co-planar electrodes on the base of the unit transmitting signals into the concrete to measure moisture non-invasively to a depth of about 3/4″ (20 mm).

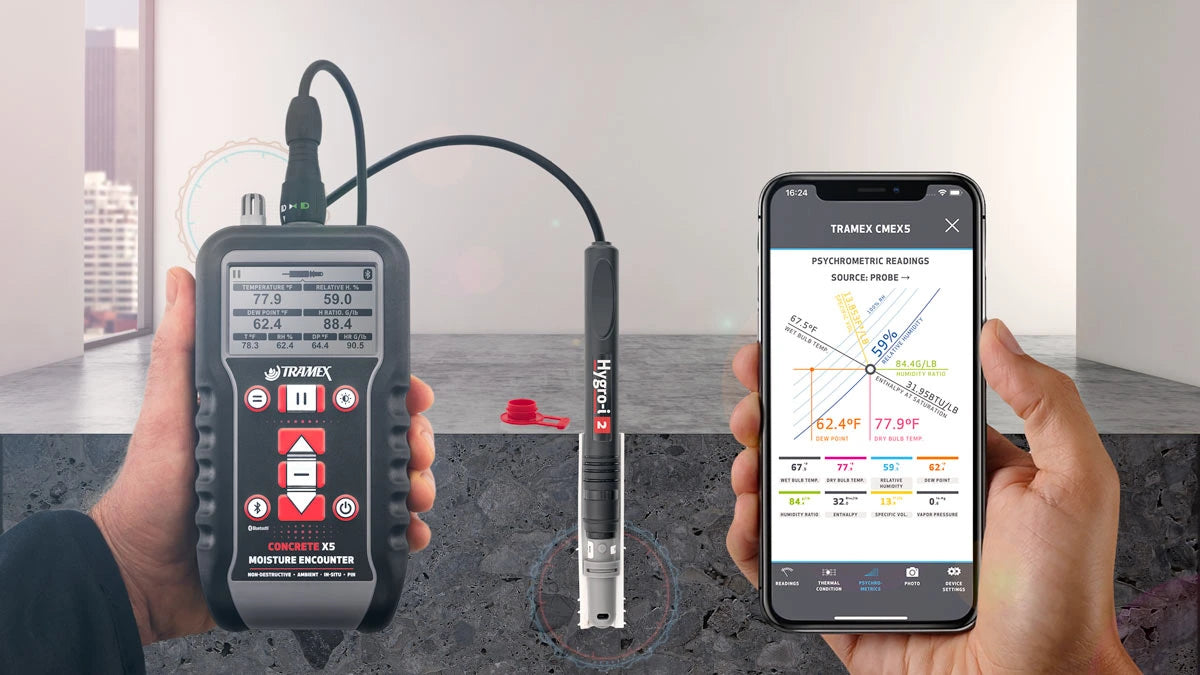

Additionally, the CMEX5 incorporates plug-in ports to use Tramex’s Hygro-I® relative humidity probe for in-situ and hood-type RH testing in compliance with ASTM F2170* for the flooring industry. A pin-type wood moisture probe is also available, making the CMEX5 an ideal instrument for use in the flooring industry, flood and water damage, restoration, and indoor air quality industries.

Tramex CMEX5 Concrete Encounter features:

• Measures up to 6.9% moisture content in concrete
• Gypsum scale of 0 – 10 comparative
• Reference scale of 0 – 100 comparative

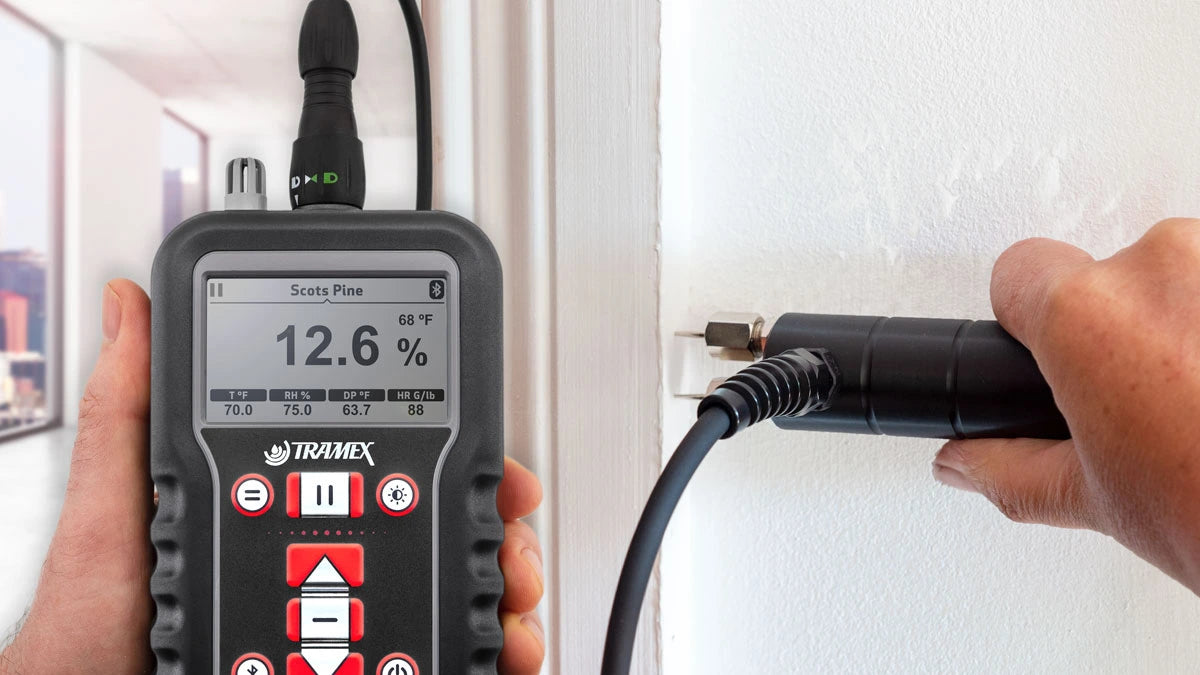

• Wood moisture content measurement of 7 – 40% using optional pin-type wood probe
• Relative humidity of 0 – 99% using optional Hygro-I® RH probe
• Large clear backlit digital display
• Hold function “freezes” meter reading when inspecting areas where the meter face is not visible
• Powered by 2 AALR6 batteries

The Tramex CMEX5 has four measurement modes:

• Non-Destructive Test Mode
• Hygrometer Mode
• Equilibrium Relative Humidity Mode (with optional plug-in probe)
• PIN Meter Mode (with optional plug-in probe)

Stone Tucker Instruments is able to recertify your Tramex CMEX5 Concrete Moisture Meter.

*ASTM F2170-16 Standard Test Method for Determining Relative Humidity in Concrete Floor Slabs Using in situ Probes
