Western Instruments’ Multi-Weld Welding Gauge

Western Instruments’ Multi-Weld Welding Gauge

by Western Instruments
$570.00 - $570.00
$570.00
$570.00 - $570.00
$570.00
  • Product Information

  • Western Instruments’ Multi-Weld Welding Gauge is a multi-purpose lever-style weld measurement gauge. The versatile Multi-Weld Gauge measures weld parameters in both imperial and metric measuring units. Pocket-sized Tri-Weld Gauge comes in a with pocket-protective sleeve. Light-coloured measurement scales contrast against the black background, making this gauge easy to read on even the fine measuring scales.

    The Multi-Weld Gauge features 3 scales: thousandths of an inch, fractions of an inch, and metric, and is designed to measure the following welding and fit-up parameters:

    • Internal Hi-Lo – metric scale to in .5 mm; imperial in 1/32 inch
    • Gap Width
    • Fillet Height – pointer measures weld throat thickness up to .8” 13/16”, or 20 mm in respective increments of 0.025”, 1/32”, or 0.5 mm
    • Leg Length – up to 1.00” (25 mm)
    • Weld Height- up to 1.00” (25 mm)
    • Undercut Depth (to + 0.010” (0.5mm)
    • Misalignment
    • Angle of Preparation – protractor pointer is divided into 2.5 degree increments; common compound angle of 75 degrees is indicated

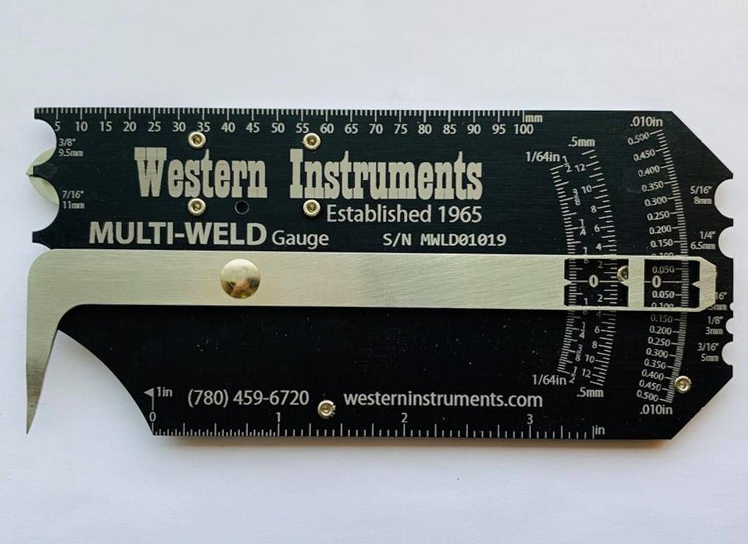

    A metric straight-ruler measures up to 100 mm on the top edge of the front face of the Multi-Weld Gauge, with a separate imperial ruler measuring up to 3.5” in 1/32” increments at the bottom of the gauge. Additionally, there are three large and four smaller ½ circle Diameter Comparators on the short edges of the gauge, from 1/16 to ½ inch in 1/16th inch increments.

    Western Instruments’ Made-in-Canada Multi-Weld Welding Gauge is the only lever-type gauge to measure weld undercut to + 0.010” (0.5mm).

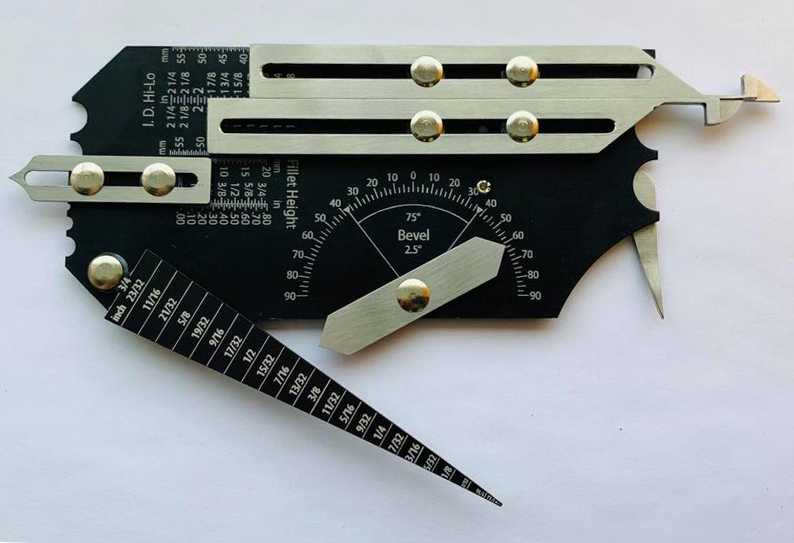

    Its Internal Hi-Lo function features parallel catch sliders for measuring inside of pipes or tubes, or plate fit-up. The Multi-Weld Gauge has a large Weld Clearance cut-away to reach across a weld to measure misalignment, or up to a reinforcing pad to measure its thickness. In addition, the Weld Height-Depth Pointer has Western Instruments’ patented Offset Correction for improved accuracy of reading.

    When contact points become worn with use or damaged, Western Instruments’ Multi-Weld Gauge can easily be checked and re-standardized by following the manufacturer’s instructions. Multi-Weld multi-purpose Welding Gauge has patent pending.
