Western Instruments Light Permanent Magnet Yoke

Western Instruments Light Permanent Magnet Yoke

Contact Stone Tucker for Pricing

by Western Instruments
  • Product Information
  • Accessories
  • Resources

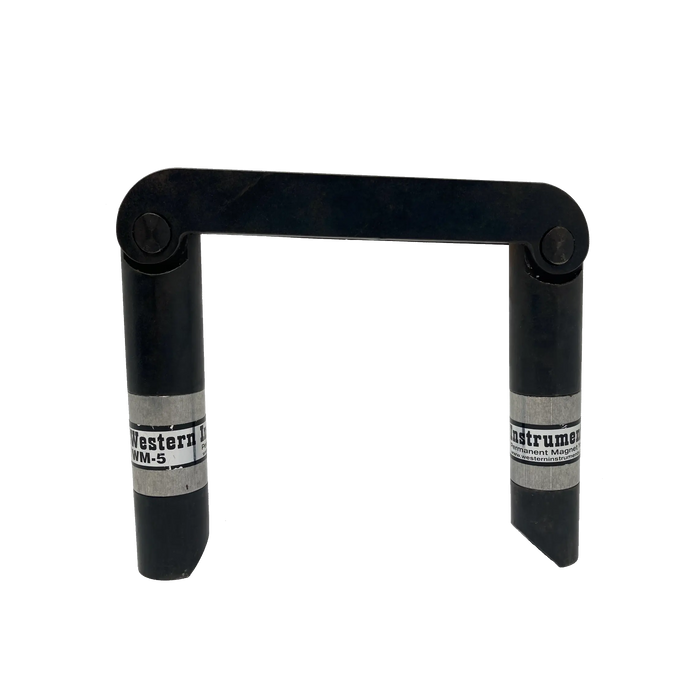

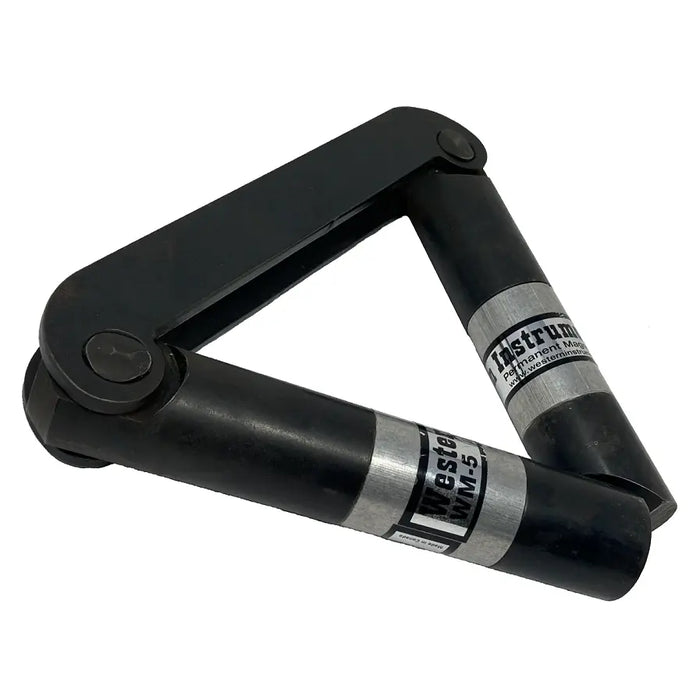

  • Western Instruments' WM-5LT Light & Compact Permanent Magnet Yoke is a Hinged-Frame magnetic particle yoke with rotating contact feet to maximize contact area with the workpiece.

    Western Instruments’ WM-5LT Permanent Magnet Yoke hinged frame magnetic particle yoke permits Magnetic Particle Inspection anywhere, as no electricity is required. The WM-5 is considered a standard Permanent Magnet Yoke; the WM-5LT is a lighter-weight model.

    Rare-earth magnet cartridges in the WM-5 Yokes translate into complete portability and no “down-time” with no batteries to recharge. All WM-series yokes lift over 50 pounds (23 kg) and are equipped with rotating contact feet to maximize the contact area of the yoke to the workpiece.

  • The WM-5LT Yoke comes with:

    • Permanent Magnet Yoke
    • Field Indicator
    • Inspection Media
    • Certificate of Calibration
    • Carrying Case
    • Operators Manual

    Magnetic Particle Inspection Kits available: Dry, Wet, Dry/Wet, Wet Fluorescent

  • Please click here to view the Western Instruments Magnet Yoke Datasheet
